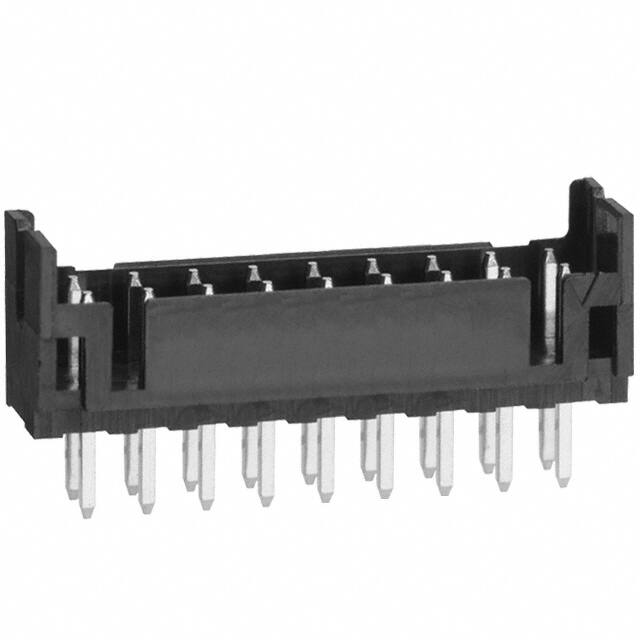

DF11-18DP-2DSA(08)

Teknik Özellikler

Additional Feature

ROW INSERTION PRODUCT

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Fastening Type

Detent Lock

Akım Değeri

2A

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V

JESD-609 Kodu

e3

Iec Conformance

NO

Number Of Conductors

ONE

Withdrawl Forcemin

.3058 N

Yükseklik

6.9mm

Filter Feature

NO

Terminal

Solder

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Overall Contact Length

0.299 7.60mm

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Contact Type

Male Pin

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Contact Resistance

30mOhm

Stack Height Mating

7.55 7.8mm 8.9mm

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.40

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Din Conformance

NO
