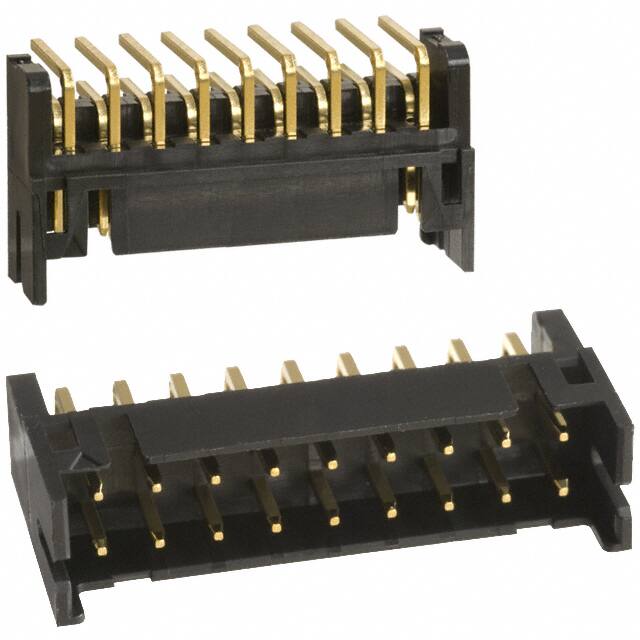

DF11-18DP-2DS(52)

Teknik Özellikler

Mixed Contacts

NO

Pozisyon Sayısı

18

Ambalaj

Tube

Durability

50 Cycles

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Gender

Male

Rated Current Signal

2A

Depth

10mm

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1000000000Ohm

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Insulation Height

0.197 5.00mm

Uzunluk

20mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Right Angle

Reach Svhc

No SVHC

Montaj Tipi

Through Hole, Right Angle

Reference Standard

UL, CSA

Contact Type

Male Pin

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Contact Materials

Brass

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR
