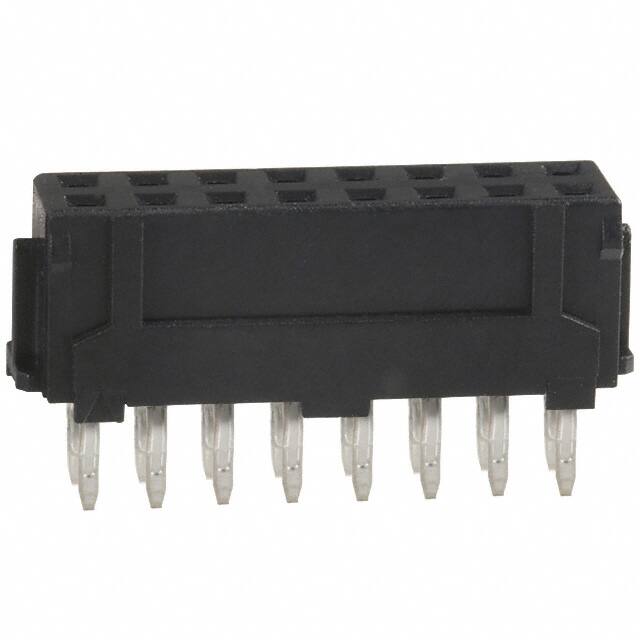

DF11-16DS-2DSA(05)

Teknik Özellikler

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Ambalaj

Bulk

Pozisyon Sayısı

16

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Voltage Rated Ac

30V

Housing Material

Polyamide

Insulation Resistance

1GOhm

Depth

5mm

Connector Type

Receptacle

Radyasyon Dayanımı

No

Housing Color

Black

Orientation

Straight

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Uzunluk

18mm

Insulation Height

0.244 6.20mm

Yayın Yılı

2001

Pitch Mating

0.079 2.00mm

Terminal

Press-Fit, Solder

Contact Materials

Brass

Contact Gender

Female

Contact Type

Female Socket

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

HTS Kodu

8536.69.40.40

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Stack Height Mating

7.8mm 8.45mm

Fastening Type

Friction Lock
