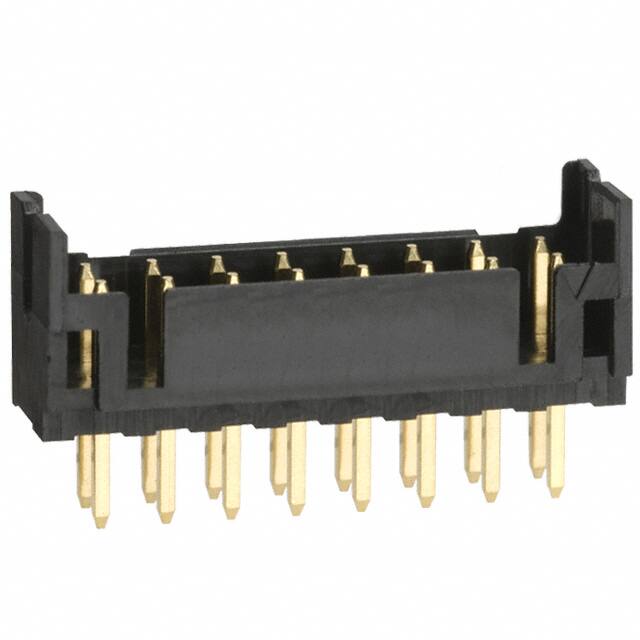

DF11-16DP-2DSA(01)

Teknik Özellikler

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Akım Değeri

2A

Fastening Type

Detent Lock

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Additional Feature

100 PCS. PER BAG PACKAGING

Filter Feature

NO

Yükseklik

6.6mm

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e4

Reference Standard

UL, CSA

Contact Type

Male Pin

Pitch Mating

0.079 2.00mm

Yayın Yılı

2008

Overall Contact Length

0.299 7.60mm

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Terminal

Solder

Contact Materials

Brass

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Connector Type

Header

Depth

5mm
