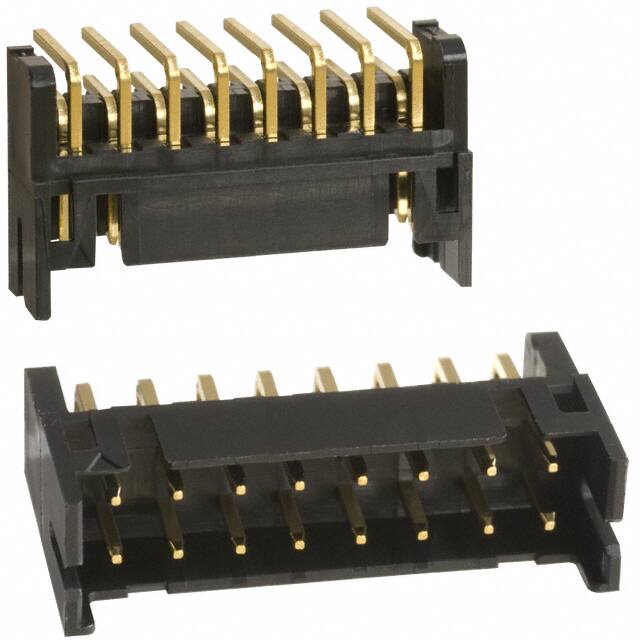

DF11-16DP-2DS(52)

Teknik Özellikler

Contact Resistance

30mOhm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

Reference Standard

UL, CSA

Contact Type

Male Pin

Polarization Key

GUIDE SLOT(S)

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Terminal

Solder

Pitch Mating

0.079 2.00mm

Yayın Yılı

2010

Yükseklik

5mm

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e4

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Max Current Rating

2A

Number Of Pcb Rows

2

Seri

DF11

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Akım Değeri

2A

Fastening Type

Detent Lock

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Style

Board to Board or Cable

Gender

Male

Rated Current Signal

2A
