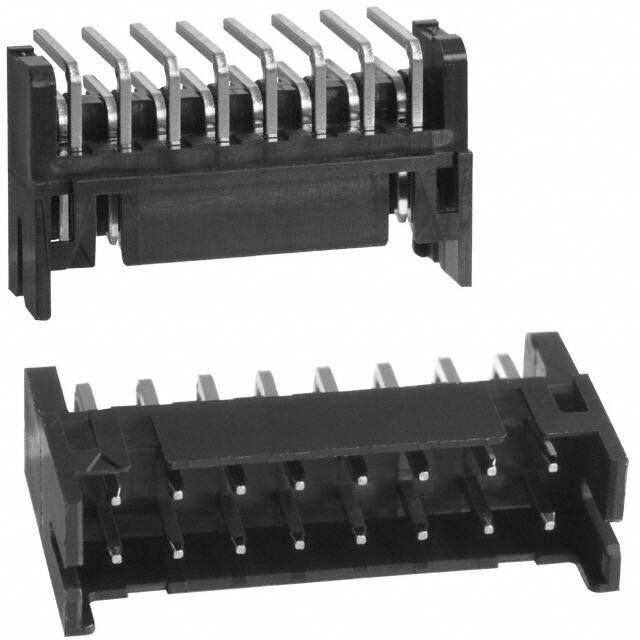

DF11-16DP-2DS(24)

Teknik Özellikler

Contact Type

Male Pin

Reference Standard

UL, CSA

Yayın Yılı

2009

Pitch Mating

0.079 2.00mm

Terminal

Solder

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Lead Pitch

2mm

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V

Fastening Type

Detent Lock

Akım Değeri

2A

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Filter Feature

NO

Yükseklik

5mm

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

JESD-609 Kodu

e3

Pozisyon Sayısı

16

Ambalaj

Tube

Mixed Contacts

NO
