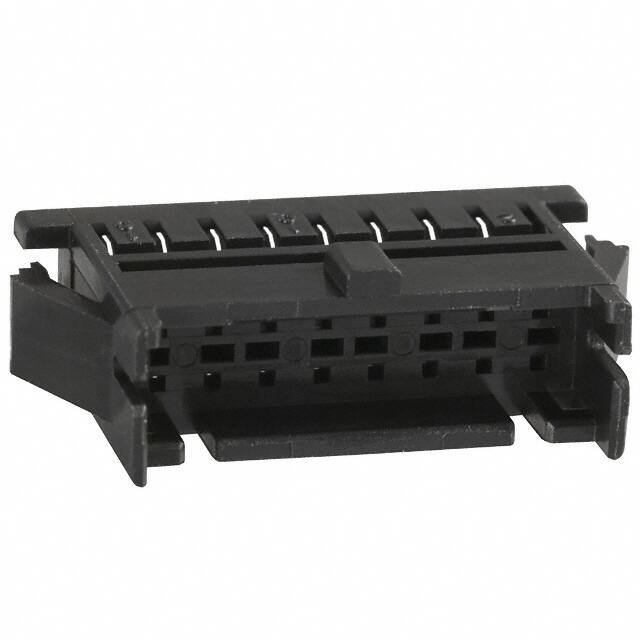

DF11-16DEP-2C

Teknik Özellikler

Total Number Of Contacts

16

Filter Feature

NO

Yükseklik

6.9mm

Withdrawl Forcemin

.3058 N

Iec Conformance

NO

Kurşunsuz

Lead Free

Renk

Black

Nominal Gerilim

250V

Min. Çalışma Sıcaklığı

-30°C

Sıra Sayısı

2

Row Spacing

0.079 (2.00mm)

Akım Değeri

2A

Seri

DF11

Max Current Rating

2A

Additional Feature

PANEL MOUNTABLE

Dielectric Withstanding Voltage

650VAC V

Contact Resistance

30mOhm

Wire Gauge Max

22 AWG

RoHS Durumu

RoHS Compliant

Lead Pitch

2mm

Contact Type

Male Pin

Reference Standard

UL, CSA

Contact Gender

Male

Note

Contacts Not Included

Yayın Yılı

2004

Max Voltage Rating Ac

250V

Polarization Key

POLARIZED HOUSING

Wire Size Min

30 AWG

Maks. Çalışma Sıcaklığı

85°C

Uzunluk

23mm

Orientation

Straight

Reliability

COMMERCIAL

Montaj Tipi

Panel Mount, Snap-In

Reach Svhc

No SVHC

Option

WITH CABLE ASSEMBLY

Insulation Resistance

1000000000Ohm

Depth

13mm

Connector Type

Plug

Kurşunsuz Kodu

yes

Din Conformance

NO
