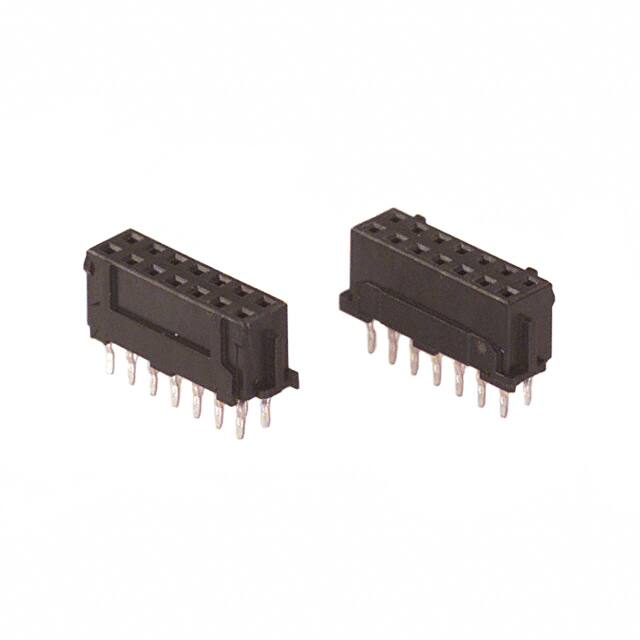

DF11-14DS-2DSA(06)

Teknik Özellikler

Contact Length Post

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Row Spacing Mating

0.079 (2.00mm)

HTS Kodu

8536.69.40.40

Contact Shape

Square

Stack Height Mating

7.8mm 8.45mm

ECCN Kodu

EAR99

Contact Resistance

30mOhm

Pitch Mating

0.079 2.00mm

Yayın Yılı

2004

Pcb Contact Pattern

RECTANGULAR

Polarization Key

HOUSING SIDE

Terminal

Press-Fit, Solder

Contact Materials

Brass

Contact Finish Post

Tin

Reference Standard

UL, CSA

Contact Type

Female Socket

Contact Gender

Female

Withdrawl Forcemin

.3058 N

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Filter Feature

NO

Applications

General Purpose

Akım Değeri

2A

Fastening Type

Friction Lock

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Contact Finish Thickness Post

78.7μin 2.00μm

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown
