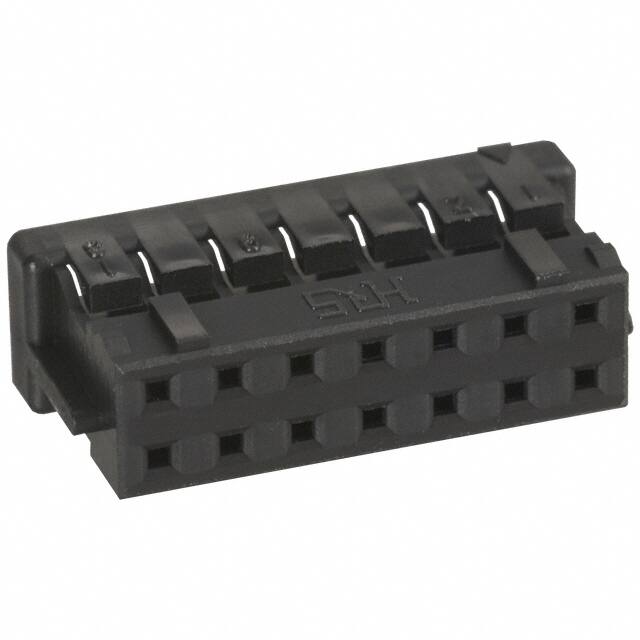

DF11-14DS-2C

Teknik Özellikler

Pozisyon Sayısı

14

Ambalaj

Bulk

Mixed Contacts

NO

Durability

30 Cycles

Fabrika Tedarik Süresi

8 Weeks

Contact Termination

Crimp

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

TIN

Mil Conformance

NO

Rated Current Signal

2A

Insulation Resistance

1GOhm

Option

WITH CABLE ASSEMBLY

Connector Type

Receptacle

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Material

Plastic

Pitch

0.079 2.00mm

Body Length Or Diameter

0.63 inch

Wire Size Min

30 AWG

Reliability

COMMERCIAL

Operating Temperature Min

-30°C

Contact Plating

Tin

Mounting Option1

LOCKING MECH

Orientation

Straight

Montaj Tipi

Free Hanging (In-Line)

Note

Contacts Not Included

Contact Type

Female Socket

Reference Standard

UL, CSA

Yayın Yılı

2008

Contact Materials

Copper

Polarization Key

POLARIZED RIB(S)

HTS Kodu

8536.69.40.40

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Renk

Black

Row Spacing

0.079 (2.00mm)

Sıra Sayısı

2
