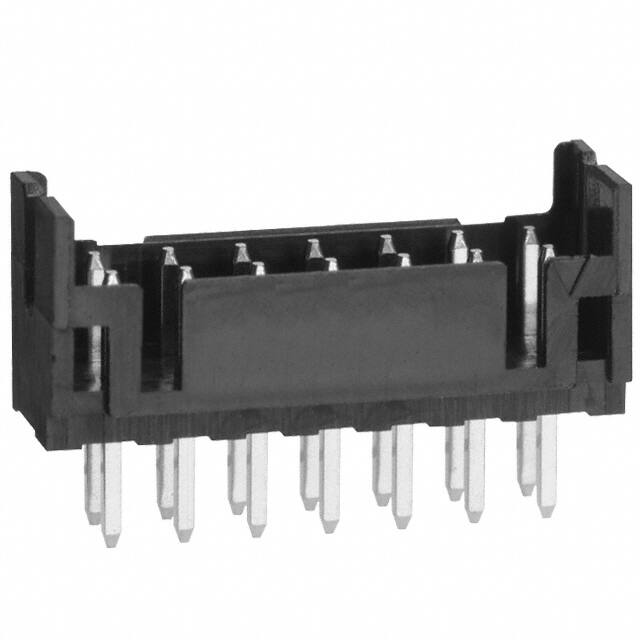

DF11-14DP-2DSA(24)

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Depth

5mm

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1GOhm

Kurşunsuz Kodu

yes

Housing Color

Black

Radyasyon Dayanımı

No

Din Conformance

NO

Orientation

Straight

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Insulation Height

0.260 6.60mm

Uzunluk

16mm

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Tin

Parça Durumu

Active

Durability

30 Cycles

Mixed Contacts

NO

Pozisyon Sayısı

14

Ambalaj

Tube

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Rated Current Signal

2A

Voltage Rated Ac

30V

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Akım Değeri

2A

Fastening Type

Detent Lock

Max Current Rating

2A

Number Of Pcb Rows

2

Seri

DF11

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch
