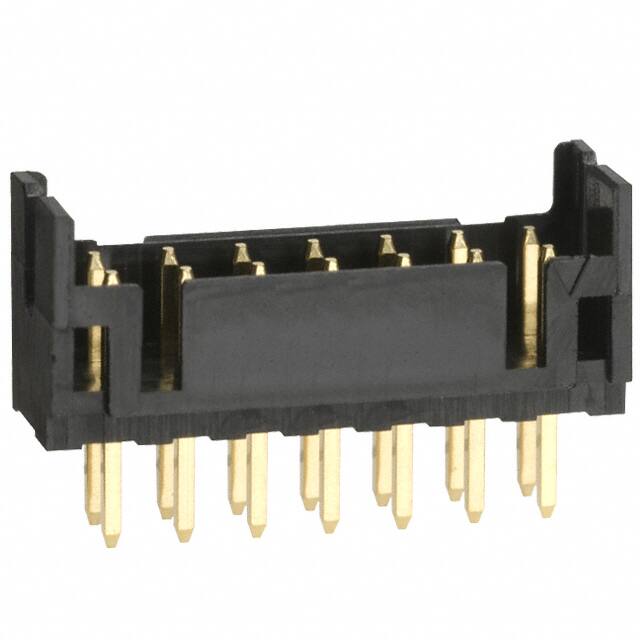

DF11-14DP-2DSA(01)

Teknik Özellikler

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Style

Board to Board or Cable

Gender

Male

Rated Current Signal

2A

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

11 Weeks

Montaj

Through Hole

Durability

50 Cycles

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

14

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Gold

Parça Durumu

Active

Insulation Height

0.260 6.60mm

Uzunluk

16mm

Montaj Tipi

Through Hole

Orientation

Straight

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Housing Color

Black

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Din Conformance

NO

Connector Type

Header

Depth

5mm

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Contact Length Post

0.118 3.00mm
