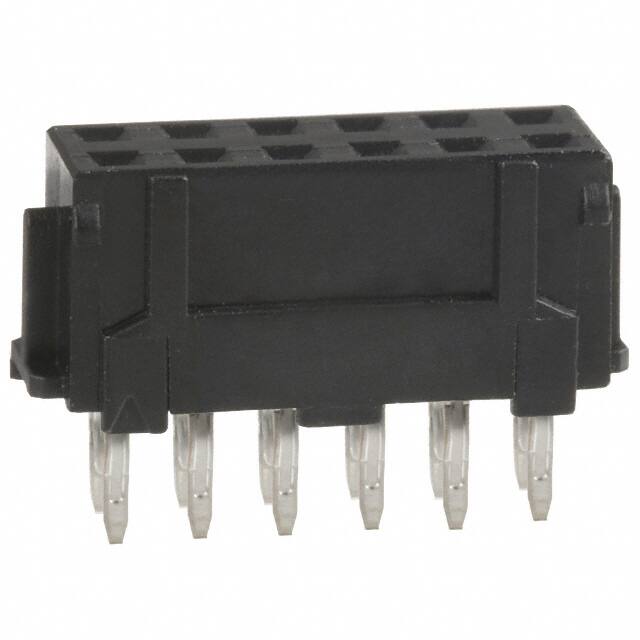

DF11-12DS-2DSA(06)

Teknik Özellikler

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Parça Durumu

Active

Durability

50 Cycles

Ambalaj

Bulk

Pozisyon Sayısı

12

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

2A

Style

Board to Board or Cable

Mil Conformance

NO

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Insulation Resistance

1000000000Ohm

Connector Type

Receptacle

Depth

5mm

Housing Color

Black

Din Conformance

NO

Orientation

Straight

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Montaj Tipi

Through Hole

Uzunluk

14mm

Insulation Height

0.244 6.20mm

Pitch Mating

0.079 2.00mm

Yayın Yılı

2010

Polarization Key

HOUSING SIDE

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Terminal

Press-Fit, Solder

Contact Finish Post

Tin

Contact Type

Female Socket

Reference Standard

UL, CSA

Contact Gender

Female

Contact Length Post

0.118 3.00mm

RoHS Durumu

RoHS Compliant
