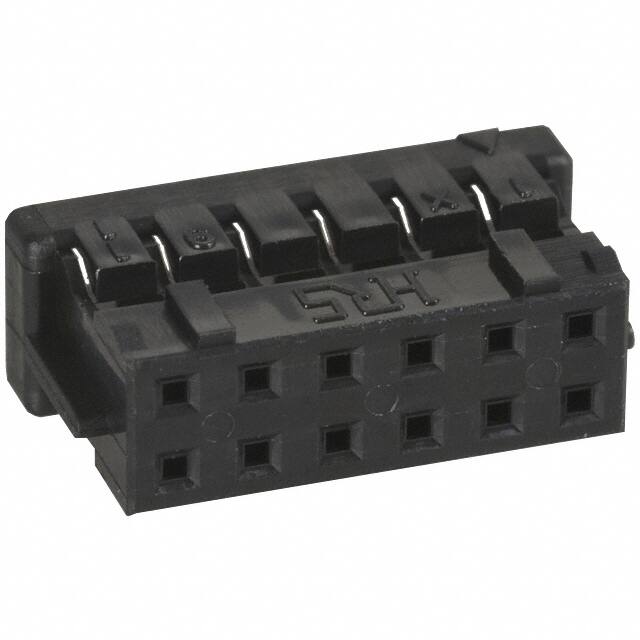

DF11-12DS-2C

Teknik Özellikler

Kurşunsuz Kodu

yes

Din Conformance

NO

Connector Type

Receptacle

Option

WITH CABLE ASSEMBLY

Insulation Resistance

1GOhm

Body Length Or Diameter

0.551 inch

Pitch

0.079 2.00mm

Wire Size Min

30 AWG

Montaj Tipi

Free Hanging (In-Line)

Reach Svhc

No SVHC

Orientation

Straight

Mounting Option1

LOCKING MECH

Contact Plating

Tin

Operating Temperature Min

-30°C

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

12 Weeks

Contact Termination

Crimp

Durability

30 Cycles

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

12

Contact Finish Mating

TIN

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Mil Conformance

NO

Voltage Rated Ac

30V

Rated Current Signal

2A

Insulation Materials

POLYAMIDE

Row Spacing

0.079 (2.00mm)

Sıra Sayısı

2

Renk

Black

Seri

DF11

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Additional Feature

100 PCS. PER PACK

Total Number Of Contacts

12

Filter Feature

NO

Operating Temperature Max

85°C

JESD-609 Kodu

e3

Withdrawl Forcemin

.3058 N
