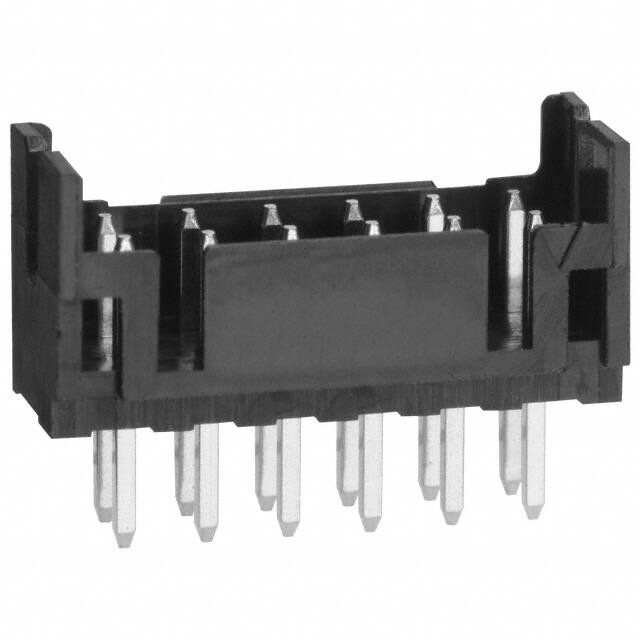

DF11-12DP-2DSA(24)

Teknik Özellikler

Housing Material

Polyamide

Body Length Or Diameter

0.551 inch

Mating Contact Pitch

0.079 inch

Radyasyon Dayanımı

No

Din Conformance

NO

Housing Color

Black

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1GOhm

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Straight

Insulation Height

0.260 6.60mm

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Pozisyon Sayısı

12

Ambalaj

Tube

Durability

30 Cycles

Style

Board to Board or Cable

Rated Current Signal

2A

Insulation Materials

Polyamide (PA), Nylon

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Voltage Rated Ac

30V

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Seri

DF11

Number Of Pcb Rows

2

Akım Değeri

2A

Length Termination

0.118 inch

Fastening Type

Detent Lock

Sıra Sayısı

2

Number Of Positions Loaded

All
