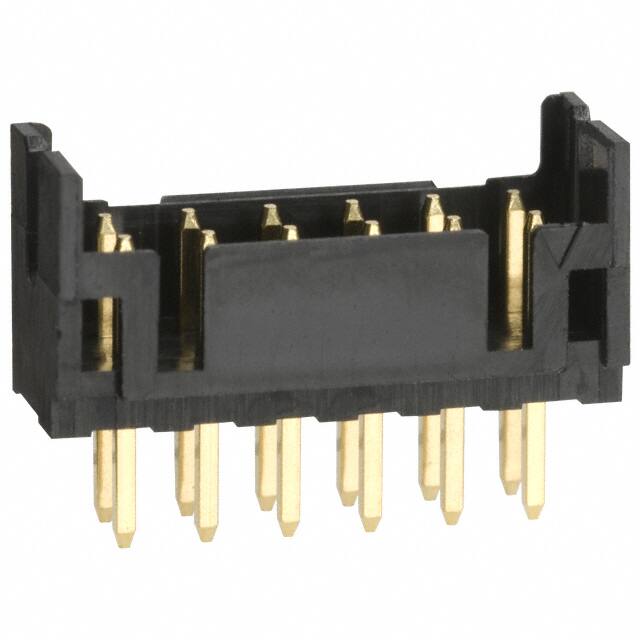

DF11-12DP-2DSA(01)

Teknik Özellikler

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Terminal

Solder

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Overall Contact Length

0.299 7.60mm

Contact Type

Male Pin

Reference Standard

UL, CSA

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

Stack Height Mating

7.55 7.8mm 8.9mm

ECCN Kodu

EAR99

Fastening Type

Detent Lock

Akım Değeri

2A

Additional Feature

100 PCS. PER BAG PACKAGING

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

250V

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Withdrawl Forcemin

.3058 N

JESD-609 Kodu

e3

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Filter Feature

NO

Parça Durumu

Active
