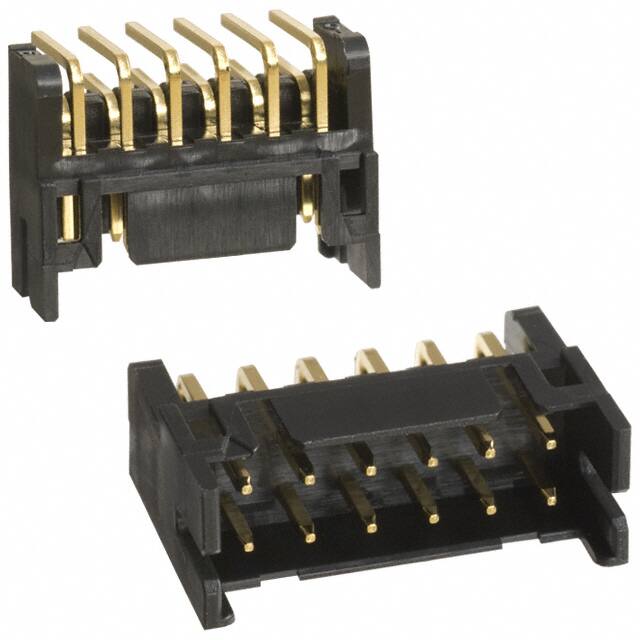

DF11-12DP-2DS(52)

Teknik Özellikler

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Iec Conformance

NO

Number Of Conductors

ONE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e4

Filter Feature

NO

Akım Değeri

2A

Fastening Type

Detent Lock

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Contact Resistance

30mOhm

Pitch Mating

0.079 2.00mm

Yayın Yılı

2010

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Terminal

Solder

Contact Materials

Brass

Reference Standard

UL, CSA

Contact Type

Male Pin

Orientation

Right Angle

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.197 5.00mm

Uzunluk

14mm
