Adet bazlı fiyat
- 1+ adet$0.12
- 10+ adet$0.11
- 100+ adet$0.11
- 500+ adet$0.10
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

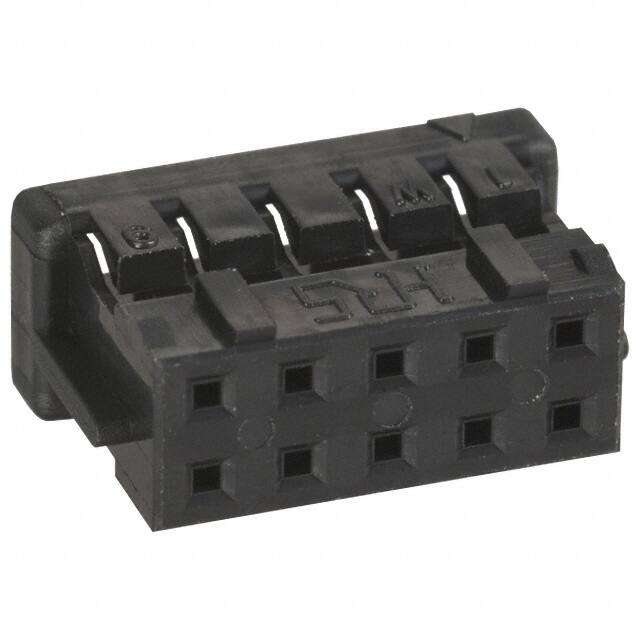

Teknik Özellikler
- Renk
- Black
- Row Spacing
- 0.079 (2.00mm)
- Sıra Sayısı
- 2
- Seri
- DF11
- Dielectric Withstanding Voltage
- 650VAC V
- Body Breadth
- 0.197 inch
- Total Number Of Contacts
- 10
- Operating Temperature Max
- 85°C
- Filter Feature
- NO
- Withdrawl Forcemin
- .3058 N
- Iec Conformance
- NO
- Contact Design
- PREASSEM CONN
- Kurşunsuz
- Lead Free
- JESD-609 Kodu
- e3
- Contact Type
- Female Socket
- Reference Standard
- UL, CSA
- Note
- Contacts Not Included
- Yayın Yılı
- 2008
- Polarization Key
- POLARIZED RIB(S)
- Contact Materials
- NOT SPECIFIED
- HTS Kodu
- 8536.69.40.40
- Contact Resistance
- 30mOhm
- ECCN Kodu
- EAR99
- RoHS Durumu
- RoHS Compliant
- Lead Pitch
- 2mm
- Insulation Resistance
- 1GOhm
- Option
- WITH CABLE ASSEMBLY
- Connector Type
- Receptacle
- Kurşunsuz Kodu
- yes
- Din Conformance
- NO
- Pitch
- 0.079 2.00mm
- Wire Size Min
- 30 AWG
- Contact Plating
- Tin
- Mounting Option1
- LOCKING MECH
- Orientation
- Straight
- Reliability
- COMMERCIAL
- Operating Temperature Min
- -30°C
- Montaj Tipi
- Free Hanging (In-Line)
- Durability
- 30 Cycles
- Pozisyon Sayısı
- 10
