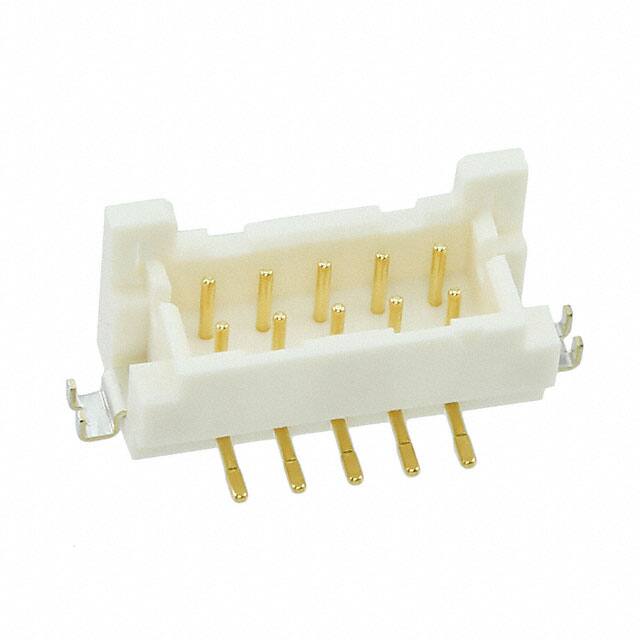

DF11-10DP-2V(57)

Teknik Özellikler

Contact Gender

Male

Contact Type

Male Pin

Contact Materials

Brass

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Yayın Yılı

2015

Pitch Mating

0.079 2.00mm

Contact Resistance

30mOhm

Stack Height Mating

8.2mm 8.45mm 9.55mm

Contact Shape

Circular

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

250V

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Fastening Type

Detent Lock

Akım Değeri

2A

Pcb Contact Row Spacing

8.3058 mm

Filter Feature

NO

Total Number Of Contacts

10

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Montaj

Surface Mount

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

10

Mixed Contacts

NO

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Gold

Mil Conformance

NO
