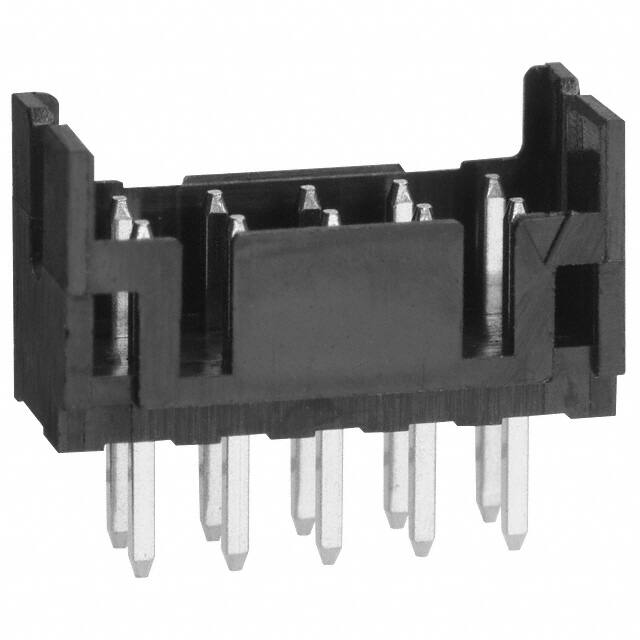

DF11-10DP-2DSA(08)

Teknik Özellikler

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Rated Current Signal

2A

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

10

Ambalaj

Bulk

Mixed Contacts

NO

Durability

30 Cycles

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

12mm

Insulation Height

0.260 6.60mm

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Mounting Option1

LOCKING MECH

Insulation Color

Black

Orientation

Straight

Din Conformance

NO

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Depth

5mm

Connector Type

Header

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Contact Resistance

30mOhm

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Contact Type

Male Pin

Reference Standard

UL, CSA
