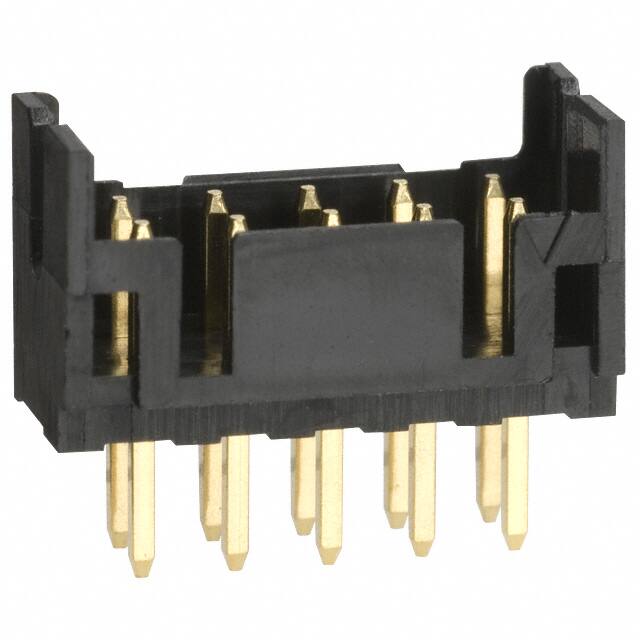

DF11-10DP-2DSA(01)

Teknik Özellikler

Montaj Tipi

Through Hole

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Straight

Uzunluk

12mm

Insulation Height

0.260 6.60mm

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Housing Color

Black

Option

GENERAL PURPOSE

Depth

5mm

Connector Type

Header

Rated Current Signal

2A

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Parça Durumu

Active

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Fabrika Tedarik Süresi

12 Weeks

Pozisyon Sayısı

10

Ambalaj

Bulk

Mixed Contacts

NO

Durability

50 Cycles

JESD-609 Kodu

e4

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

Yükseklik

6.6mm

Filter Feature

NO

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch
