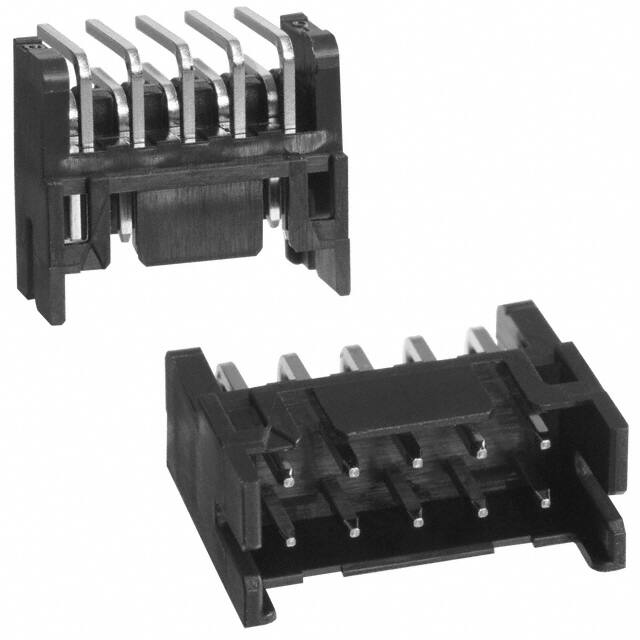

DF11-10DP-2DS(24)

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Insulation Resistance

1GOhm

Option

GENERAL PURPOSE

Depth

10mm

Connector Type

Header

Housing Color

Black

Kurşunsuz Kodu

yes

Din Conformance

NO

Radyasyon Dayanımı

No

Orientation

Right Angle

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Montaj Tipi

Through Hole, Right Angle

Reach Svhc

No SVHC

Uzunluk

12mm

Insulation Height

0.197 5.00mm

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Tin

Parça Durumu

Active

Durability

30 Cycles

Pozisyon Sayısı

10

Ambalaj

Tube

Mixed Contacts

NO

Fabrika Tedarik Süresi

12 Weeks

Montaj

Through Hole

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

2A

Style

Board to Board or Cable

Gender

Male

Voltage Rated Ac

30V

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Fastening Type

Detent Lock

Akım Değeri

2A

Number Of Pcb Rows

2

Seri

DF11

Max Current Rating

2A

Dielectric Withstanding Voltage

650VAC V
