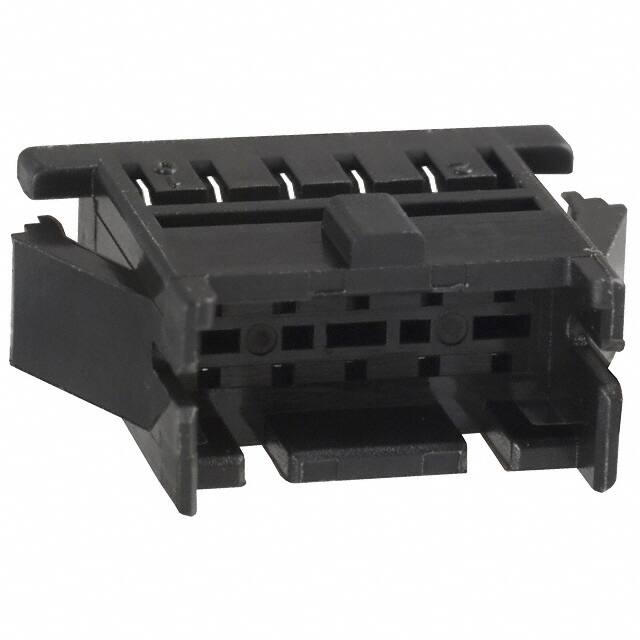

DF11-10DEP-2C

Teknik Özellikler

Additional Feature

PANEL MOUNTABLE

Dielectric Withstanding Voltage

650VAC V

Seri

DF11

Max Current Rating

2A

Akım Değeri

2A

Min. Çalışma Sıcaklığı

-30°C

Sıra Sayısı

2

Row Spacing

0.079 (2.00mm)

Nominal Gerilim

250V

Renk

Black

Iec Conformance

NO

Kurşunsuz

Lead Free

Withdrawl Forcemin

.3058 N

Yükseklik

6.9mm

Filter Feature

NO

Total Number Of Contacts

10

Contact Materials

NOT SPECIFIED

Polarization Key

POLARIZED HOUSING

Yayın Yılı

2004

Max Voltage Rating Ac

250V

Contact Gender

Male

Note

Contacts Not Included

Contact Type

Male Pin

Reference Standard

UL, CSA

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Wire Gauge Max

22 AWG

Contact Resistance

30mOhm

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.40

Housing Material

Polyamide

Pitch

0.079 2.00mm

Din Conformance

NO

Kurşunsuz Kodu

yes

Option

WITH CABLE ASSEMBLY

Connector Type

Plug

Depth

13mm

Reach Svhc

No SVHC

Montaj Tipi

Panel Mount, Snap-In

Reliability

COMMERCIAL
