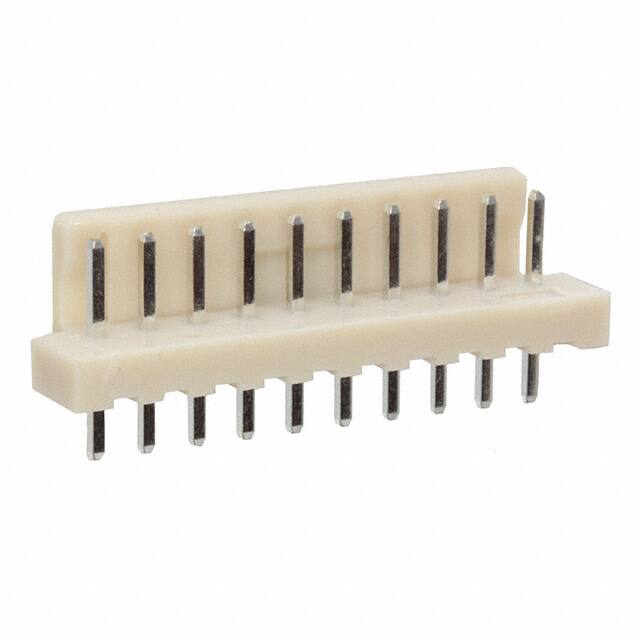

DF1-10P-2.5DSA(05)

Teknik Özellikler

Terminal Adımı

2.5mm

Insulation Height

0.295 7.50mm

Uzunluk

27.5mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Insulation Color

Brown

Orientation

Straight

Mounting Option1

LOCKING

Montaj Tipi

Through Hole

Connector Type

Header

Depth

6mm

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Din Conformance

NO

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.098 inch

Housing Material

Polyamide

Shrouding

Shrouded - 1 Wall

Mil Conformance

NO

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

10

Durability

30 Cycles

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Filter Feature

NO

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.556 N

JESD-609 Kodu

e3

Sıra Sayısı

1

Number Of Positions Loaded

All

Nominal Gerilim

250V

Contact Finish Thickness Mating

39.4μin 1.00μm
