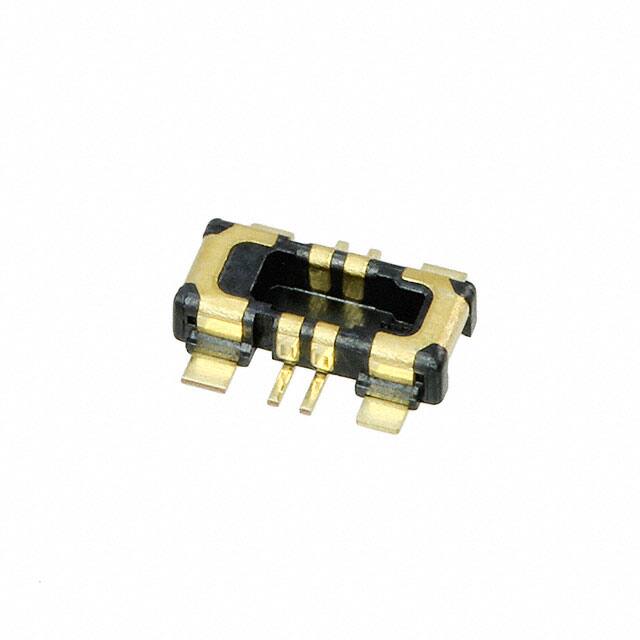

BM22L-6P-V(53)

Teknik Özellikler

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Din Conformance

NO

Montaj Tipi

Surface Mount

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

50V

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Iec Conformance

NO

Number Of Positions Loaded

All

Connector Type

Header

Contact Gender

MALE

Insulation Color

Black

Pozisyon Sayısı

6 (4 + 2 Power)

Style

Board to Board

Total Number Of Contacts

6

Contact Type

Outer Shroud Contact

Filter Feature

NO

Insulation Materials

Liquid Crystal Polymer (LCP)

Pin Sayısı

6

Shrouding

Shrouded - 4 Wall

Sıra Sayısı

2

Fastening Type

Friction Lock

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Finish Thickness Mating

2.00μin 0.051μm

Contact Finish Mating

Gold

RoHS Durumu

RoHS Compliant

Yayın Yılı

2017

Mixed Contacts

YES

Insulation Height

0.030 0.75mm

Seri

BM22

Çalışma Sıcaklığı

-35°C~85°C

Montaj

Surface Mount

Contact Finish Thickness Post

Flash

Terminal

Solder

Stack Height Mating

0.9mm
