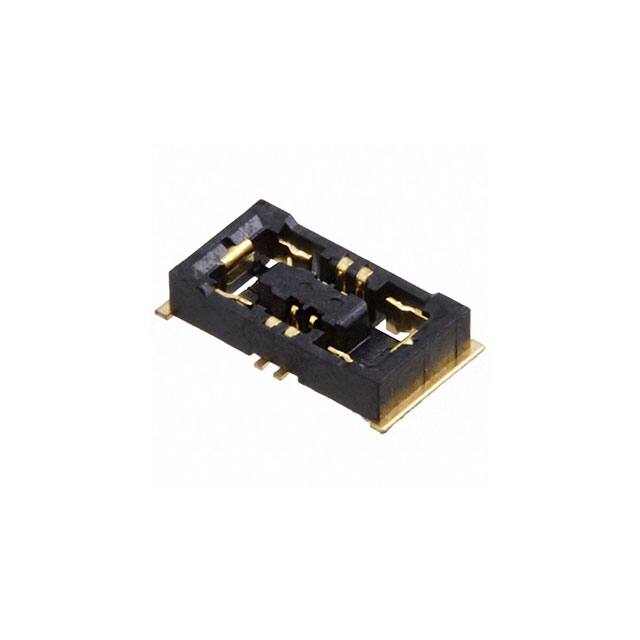

BM22-6S-V(51)

Teknik Özellikler

Yayın Yılı

2015

Insulation Height

0.035 0.90mm

Mixed Contacts

YES

Özellikler

Pick and Place

Seri

BM22

Contact Finish Thickness Post

Flash

Montaj

Surface Mount

Çalışma Sıcaklığı

-35°C~85°C

Terminal

Solder

Stack Height Mating

0.9mm

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Insulation Resistance

50000000Ohm

Pin Sayısı

6

Insulation Materials

Liquid Crystal Polymer (LCP)

Reliability

COMMERCIAL

Fastening Type

Friction Lock

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

2

Contact Finish Mating

Gold

Contact Finish Thickness Mating

1.97μin 0.050μm

Contact Resistance

50mOhm

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Number Of Conductors

ONE

Contact Gender

FEMALE

Connector Type

Receptacle

Pozisyon Sayısı

6 (4 + 2 Power)

Insulation Color

Black

Style

Board to FPC

Total Number Of Contacts

6

Pitch Mating

0.016 0.40mm

Contact Type

Center Strip Contact

Ambalaj

Tape & Reel (TR)

Current Rating Amps

0.3A Signal 4A Power

Parça Durumu

Active

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99

Nominal Gerilim

50V
