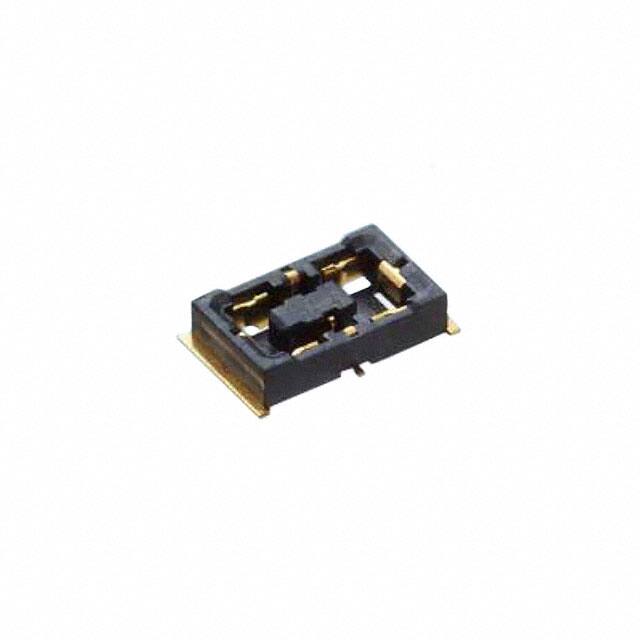

BM22-4S-V(53)

Teknik Özellikler

Style

Board to FPC

Total Number Of Contacts

4

Filter Feature

NO

Contact Type

Center Strip Contact

Option

GENERAL PURPOSE

Iec Conformance

NO

Number Of Positions Loaded

All

Connector Type

Receptacle

Contact Gender

FEMALE

Pozisyon Sayısı

4 (2 + 2 Power)

Insulation Color

Black

Nominal Gerilim

50V

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

10 Weeks

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Current Rating Amps

0.3A Signal 4A Power

Parça Durumu

Active

Montaj Tipi

Surface Mount

Din Conformance

NO

Terminal

Solder

Stack Height Mating

0.9mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Copper Alloy

Yayın Yılı

2014

Insulation Height

0.035 0.90mm

Mixed Contacts

YES

Özellikler

Pick and Place

Seri

BM22

Contact Finish Thickness Post

Flash

Çalışma Sıcaklığı

-35°C~85°C

Montaj

Surface Mount

Mil Conformance

NO

Contact Finish Mating

Gold

Contact Finish Thickness Mating

1.97μin 0.050μm

JESD-609 Kodu

e4

RoHS Durumu

RoHS Compliant

Pin Sayısı

4

Insulation Materials

Liquid Crystal Polymer (LCP)
