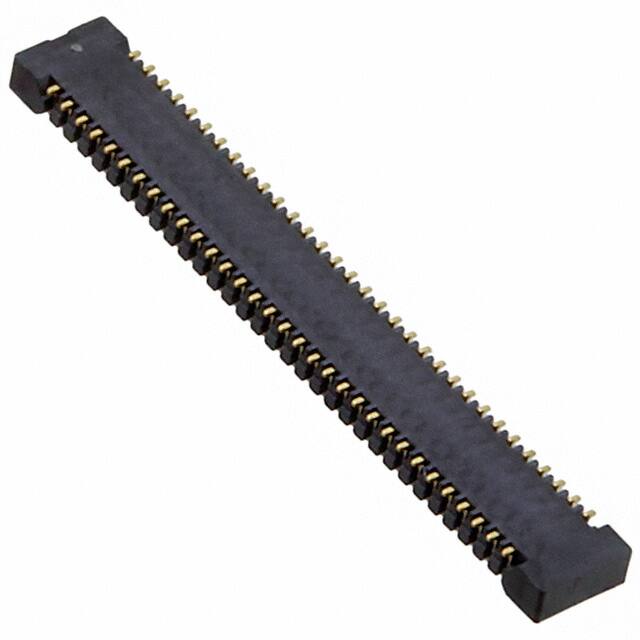

BM14B(0.8)-60DS-0.4V(53)

Teknik Özellikler

Seri

BM14

Özellikler

Solder Retention

Number Of Pcb Rows

2

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Operating Temperature Min

-35°C

Contact Finish Thickness

2.00μin 0.051μm

Ambalaj

Cut Tape (CT)

Contact Materials

PHOSPHOR BRONZE

Dielectric Withstanding Voltage

100VAC V

Sıra Sayısı

2

Connector Type

Receptacle, Center Strip Contacts

Fabrika Tedarik Süresi

12 Weeks

HTS Kodu

8536.69.40.40

Terminal

SMD/SMT

Gender

Receptacle

Stack Height Mating

0.8mm

Body Depth

0.031 inch

Stack Height

800μm

REACH Uyumluluk Kodu

unknown

Operating Temperature Max

85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Height Above Board

0.031 0.80mm

Pitch

0.016 0.40mm

Insulation Resistance

500000000Ohm

Durability

10 Cycles

Reference Standard

UL

Insulator Color

BLACK

Total Number Of Contacts

60

Rated Current Signal

0.3A

Contact Finish

Gold

Montaj

Surface Mount

Number Of Conductors

ONE

Pozisyon Sayısı

60

Pcb Contact Row Spacing

1.8796 mm

ECCN Kodu

EAR99

Polarization Key

POLARIZED HOUSING

Pcb Contact Pattern

RECTANGULAR

Contact Resistance

100mOhm

Reliability

COMMERCIAL
