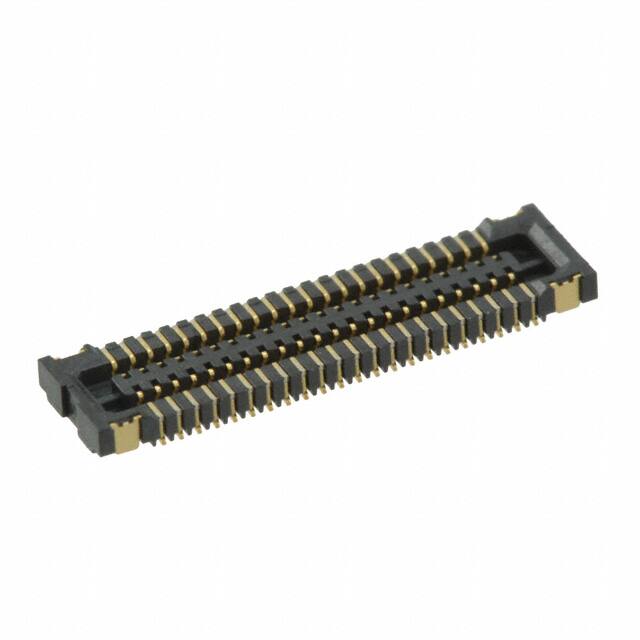

BM10NB(0.8)-30DS-0.4V(51)

Teknik Özellikler

Operating Temperature Max

85°C

Height Above Board

0.031 0.80mm

Montaj Tipi

Surface Mount

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Stack Height Mating

0.8mm

Stack Height

800μm

Iec Conformance

NO

Mil Conformance

NO

Terminal

SMD/SMT

Ul Flammability Code

94V-0

Sıra Sayısı

2

Connector Type

Receptacle, Center Strip Contacts

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tape & Reel (TR)

Operating Temperature Min

-35°C

Contact Gender

FEMALE

Contact Finish Thickness

2.00μin 0.051μm

Özellikler

Solder Retention

Number Of Pcb Rows

2

Seri

BM10

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

RoHS Durumu

RoHS Compliant

Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Parça Durumu

Active

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Radyasyon Dayanımı

No

Contact Finish

Gold

Montaj

Surface Mount

Pozisyon Sayısı

30

Number Of Conductors

ONE

Insulator Color

BLACK

Total Number Of Contacts

30

Insulation Resistance

500000000Ohm

Reference Standard

UL

Pitch

0.016 0.40mm
