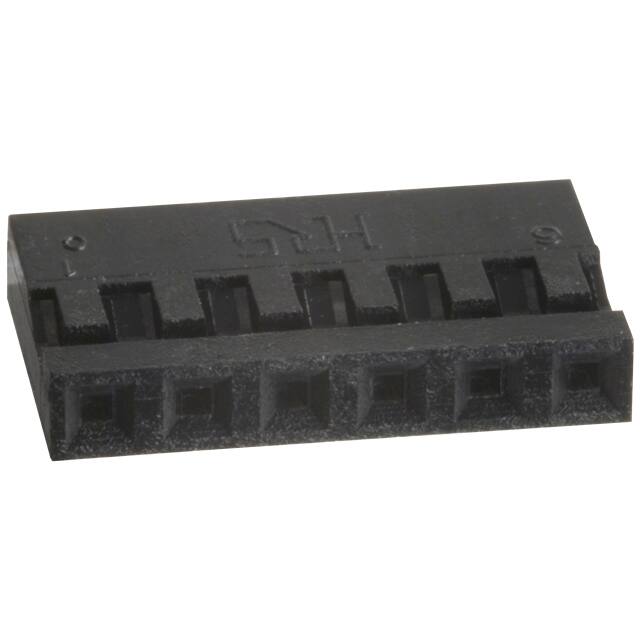

A4B-6S-2C

Teknik Özellikler

Seri

A4

Contact Termination

Crimp

RoHS Durumu

RoHS Compliant

Contact Gender

Female

Yükseklik

2mm

Kurşunsuz Kodu

yes

Genişlik

2mm

Mixed Contacts

NO

Ul Flammability Code

94V-0

Operating Temperature Max

85°C

Yayın Yılı

2008

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Orientation

Straight

Iec Conformance

NO

Nominal Gerilim

200V

Contact Materials

Bronze

Operating Temperature Min

-55°C

Montaj

Cable, Free Hanging

Contact Type

Female Socket

Uzunluk

12mm

Kurşunsuz

Lead Free

Contact Plating

Gold

Akım Değeri

1A

Montaj Tipi

Free Hanging (In-Line)

Filter Feature

NO

Pozisyon Sayısı

6

Reference Standard

UL

Option

GENERAL PURPOSE

Depth

7mm

Pitch

0.079 2.00mm

ECCN Kodu

EAR99

Total Number Of Contacts

6

Renk

Black

Note

Contacts Not Included

Ambalaj

Bulk

Reliability

COMMERCIAL

Body Breadth

0.079 inch

Housing Material

Polybutylene

Parça Durumu

Active
