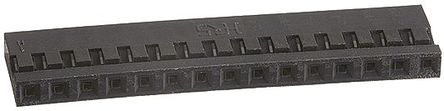

A4B-15S-2C

Teknik Özellikler

Renk

Black

Total Number Of Contacts

15

Note

Contacts Not Included

Ambalaj

Bulk

Wire Size Max

26 AWG

Additional Feature

COMPATIBLE CONTACTS: A3B-2630SCFC; A3B-2630SCC; A3B-3236SCFC

Depth

7mm

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

JESD-609 Kodu

e3

Connector Type

Receptacle

REACH Uyumluluk Kodu

unknown

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Reliability

COMMERCIAL

Contact Finish Mating

MATTE TIN

Body Breadth

0.079 inch

Housing Material

PBT

Sıra Sayısı

1

Parça Durumu

Active

Genişlik

2mm

Ul Flammability Code

94V-0

Mixed Contacts

NO

Operating Temperature Max

85°C

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2008

Din Conformance

NO

Wire Size Min

36 AWG

Orientation

Straight

Gender

Female

Contact Termination

Crimp

Seri

A4

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Montaj Tipi

Free Hanging (In-Line)

Filter Feature

NO

Pozisyon Sayısı

15

Reference Standard

UL

Option

GENERAL PURPOSE

Iec Conformance

NO
