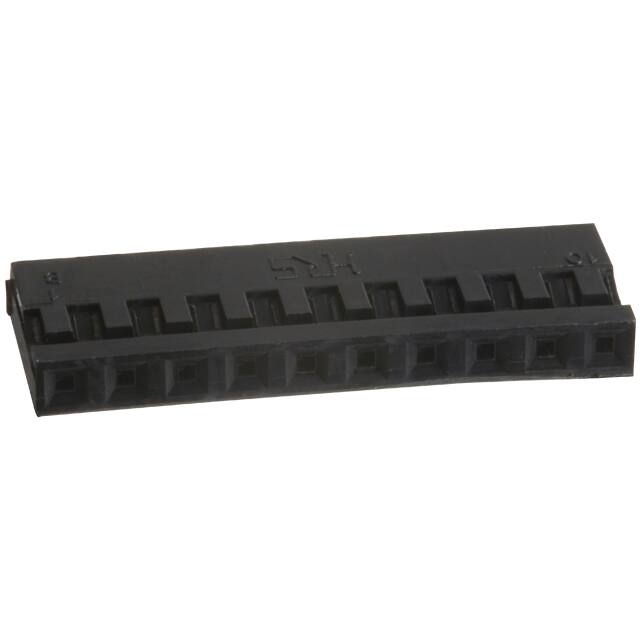

A4B-10S-2C

Teknik Özellikler

Parça Durumu

Active

Housing Material

PBT

Reliability

COMMERCIAL

REACH Uyumluluk Kodu

unknown

Connector Type

Receptacle

Max Current Rating

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Pitch

0.079 2.00mm

Min. Çalışma Sıcaklığı

-55°C

Dielectric Withstanding Voltage

650VAC V

Wire Size Max

26 AWG

Ambalaj

Bulk

Renk

Black

Total Number Of Contacts

10

Montaj

Cable, Free Hanging

Iec Conformance

NO

Reference Standard

UL

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)

Kurşunsuz

Lead Free

Contact Termination

Crimp

Seri

A4

Gender

Female

Rated Current Signal

1A

Orientation

Straight

Mixed Contacts

NO

Sıra Sayısı

1

Body Breadth

0.079 inch

Contact Finish Mating

MATTE TIN

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Max Voltage Rating Ac

200V

Depth

7mm

Additional Feature

COMPATIBLE CONTACTS: A3B-2630SCFC; A3B-2630SCC; A3B-3236SCFC

Note

Contacts Not Included

Uzunluk

20mm

Contact Type

Female Socket

Contact Materials

COPPER ALLOY
