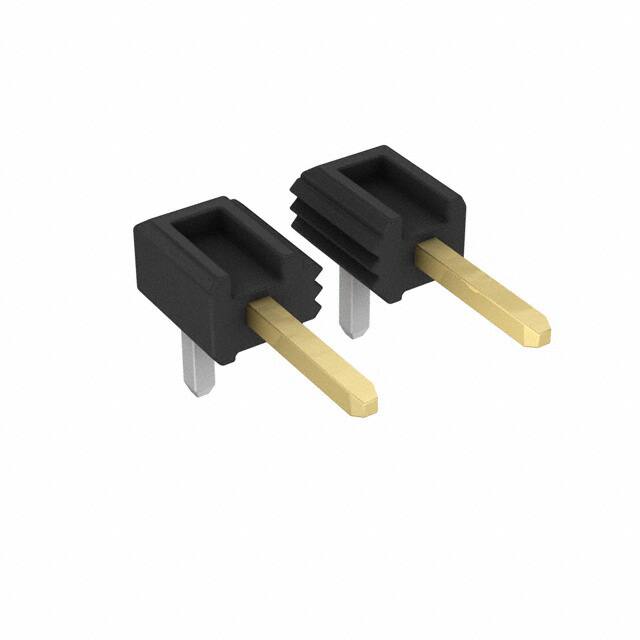

A4B-10PA-2DS(71)

Teknik Özellikler

Seri

A4

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Gender

Male

Fastening Type

Push-Pull

Style

Board to Board or Cable

Flammability Rating

UL94 V-0

Orientation

Right Angle

Montaj

Through Hole

Montaj Tipi

Through Hole, Right Angle

Reference Standard

UL

Dielectric Withstanding Voltage

650VAC V

Number Of Positions Loaded

All

Radyasyon Dayanımı

No

Contact Finish Post

Tin

Contact Finish Thickness Mating

Flash

Ambalaj

Bulk

Reliability

COMMERCIAL

Housing Material

Polyamide

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Header

Shrouding

Unshrouded

Insulation

Insulated

Terminal Adımı

2.0066mm

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Kinked Pin, Solder

Yayın Yılı

2008

Fabrika Tedarik Süresi

8 Weeks

Insulation Height

0.079 2.00mm

Nominal Gerilim

200V

Contact Materials

Brass

Contact Shape

Square

Contact Type

Male Pin

Body Length Or Diameter

0.787 inch

Akım Değeri

1A

HTS Kodu

8536.69.40.40

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10
