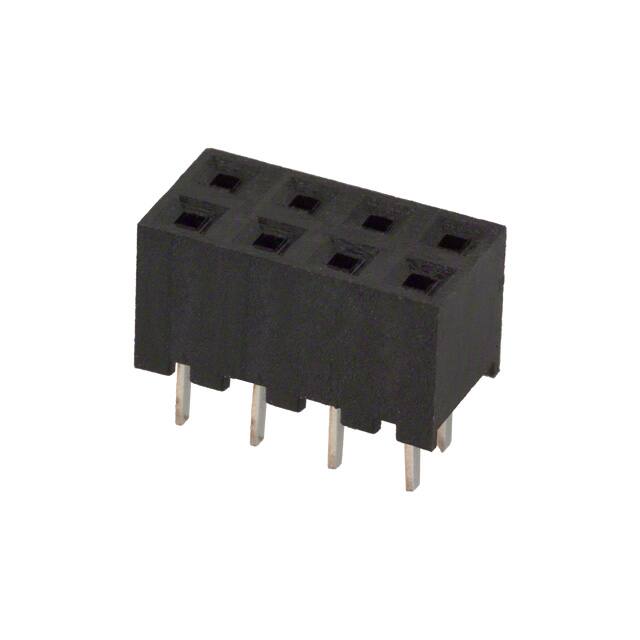

A3C-8DA-2DSC(71)

Teknik Özellikler

Contact Type

Female Socket

Contact Finish Post

Tin

Housing Color

Black

Pozisyon Sayısı

8

Contact Finish Thickness Post

39.4μin 1.00μm

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Resistance

1000000000Ohm

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Terminal

Solder

Ambalaj

Tube

Body Length Or Diameter

0.315 inch

Durability

100 Cycles

Lead Pitch

2mm

Contact Materials

Phosphor Bronze

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Montaj

Through Hole

Contact Shape

Square

Seri

A3

Contact Finish Mating

Gold

Rated Current Signal

1A

Reliability

COMMERCIAL

Row Spacing Mating

0.079 (2.00mm)

Body Breadth

0.157 inch

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Reference Standard

UL

Fastening Type

Push-Pull

Connector Type

Receptacle

Contact Length Post

0.079 2.00mm

Sıra Sayısı

2

Dielectric Withstanding Voltage

650VAC V

Number Of Positions Loaded

All

Housing Material

Plastic

Pitch Mating

0.079 2.00mm
