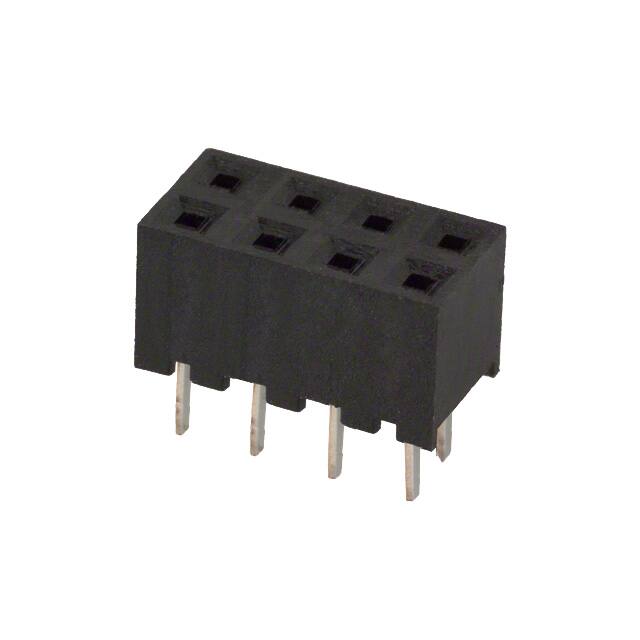

A3C-8DA-2DSA(71)

Teknik Özellikler

Contact Finish Thickness Mating

8.00μin 0.203μm

Row Spacing Mating

0.079 (2.00mm)

Pitch

2mm

Housing Color

Black

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

8

Contact Finish Post

Tin

Contact Type

Female Socket

Yayın Yılı

2008

Ambalaj

Tube

Terminal

Solder

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Sıra Sayısı

2

Fastening Type

Push-Pull

Connector Type

Receptacle

Contact Length Post

0.118 3.00mm

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Contact Plating

Gold

Renk

Black

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Gender

Female

Çalışma Sıcaklığı

-55°C~85°C

Insulation Materials

Polybutylene Terephthalate (PBT)

Parça Durumu

Active

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Contact Gender

Female

Number Of Contacts

8

Nominal Gerilim

200VAC

Current Rating Amps

1A

Stack Height Mating

5.1mm 6mm

Lead Pitch

2mm

Montaj Tipi

Through Hole

Akım Değeri

1A
