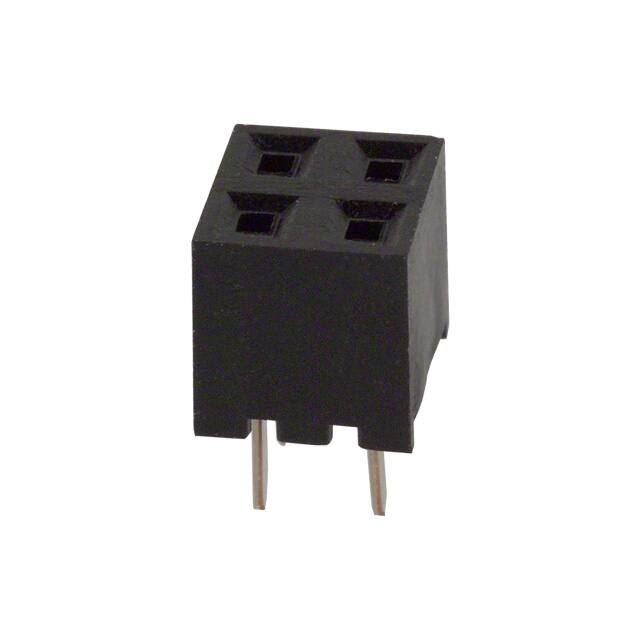

A3C-4DA-2DSC(71)

Teknik Özellikler

Body Breadth

0.157 inch

Row Spacing Mating

0.079 (2.00mm)

Yayın Yılı

2004

Housing Material

Plastic

Pitch Mating

0.079 2.00mm

Fastening Type

Push-Pull

Contact Length Post

0.079 2.00mm

Connector Type

Receptacle

Sıra Sayısı

2

Dielectric Withstanding Voltage

650VAC V

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Pcb Rows

2

Reference Standard

UL

Çalışma Sıcaklığı

-55°C~85°C

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Insulation Materials

Polybutylene Terephthalate (PBT)

Style

Board to Board or Cable

Contact Gender

Female

Parça Durumu

Active

Nominal Gerilim

200VAC

REACH Uyumluluk Kodu

unknown

Stack Height Mating

5.1mm 6mm

Montaj Tipi

Through Hole

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Length Termination

0.079 inch

Body Depth

0.165 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Resistance

1000000000Ohm

Polarization Key

POLARIZED HOUSING

Contact Finish Post

Tin

Contact Type

Female Socket

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

4
