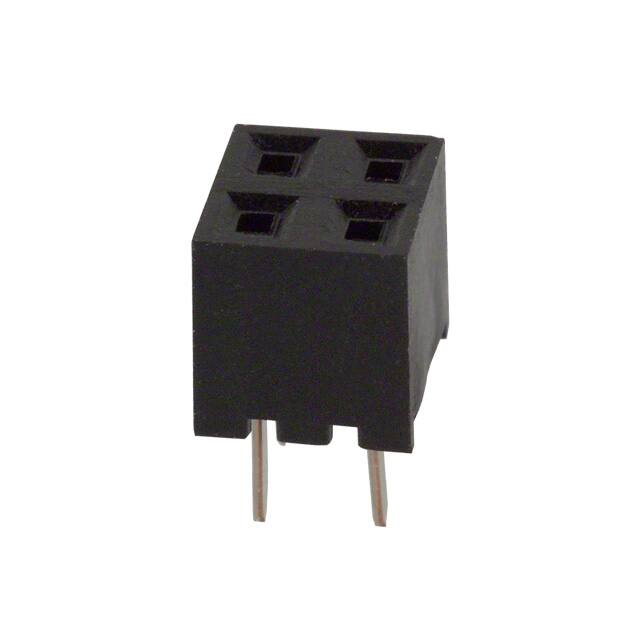

A3C-4DA-2DSA(71)

Teknik Özellikler

Contact Finish Post

Tin

Contact Type

Female Socket

Housing Color

Black

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

4

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Contact Length Post

0.118 3.00mm

Connector Type

Receptacle

Fastening Type

Push-Pull

Sıra Sayısı

2

Housing Material

Plastic

Pitch Mating

0.079 2.00mm

Yayın Yılı

2004

Ambalaj

Tray

Terminal

Solder

REACH Uyumluluk Kodu

unknown

Lead Pitch

2mm

Stack Height Mating

5.1mm 6mm

Nominal Gerilim

200VAC

ECCN Kodu

EAR99

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Parça Durumu

Active

Insulation Materials

Polybutylene Terephthalate (PBT)

Gender

Female

Çalışma Sıcaklığı

-55°C~85°C

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Contact Shape

Square

Seri

A3

Orientation

Straight

Montaj

Through Hole

Contact Finish Mating

Gold

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)
