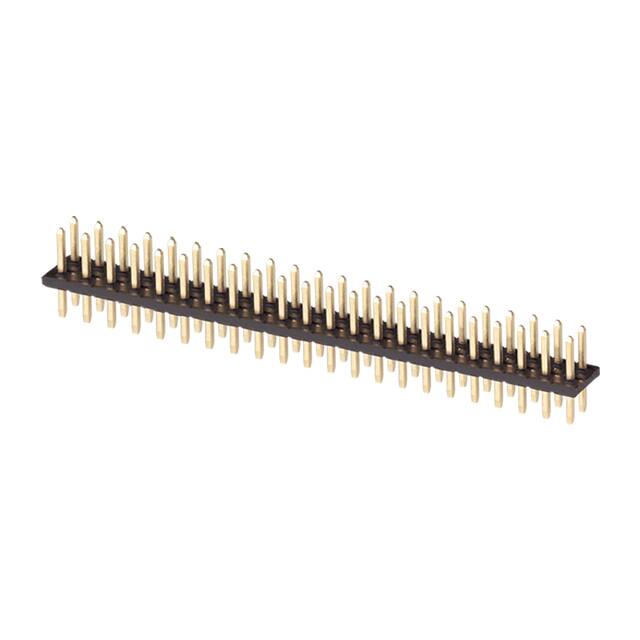

A3C-44P-2DSA

Teknik Özellikler

Durability

100 Cycles

Lead Pitch

2mm

Plating Thickness

8μin

Filter Feature

NO

Contact Materials

Brass

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.079 inch

Montaj

Through Hole

Contact Resistance

15mOhm

Seri

A3

Contact Shape

Square

Din Conformance

NO

Contact Finish Mating

Gold

Rated Current Signal

1A

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Pozisyon Sayısı

44

Contact Finish Thickness Post

Flash

Housing Color

Black

Contact Type

Male Pin

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance

1000000000Ohm

Contact Finish Thickness Mating

8.00μin 0.203μm

Pcb Contact Pattern

RECTANGULAR

Yükseklik

4.4mm

Shrouding

Unshrouded

Number Of Conductors

ONE

Ambalaj

Bulk

Terminal

Solder

Nominal Gerilim

200V

Stack Height Mating

5.1mm 7.9mm

Overall Contact Length

0.276 7.00mm

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Style

Board to Board or Cable

Contact Gender

Male

Insulation Height

0.035 0.90mm

Çalışma Sıcaklığı

-55°C~85°C

Insulation Materials

Polyamide (PA), Nylon

Orientation

Straight
