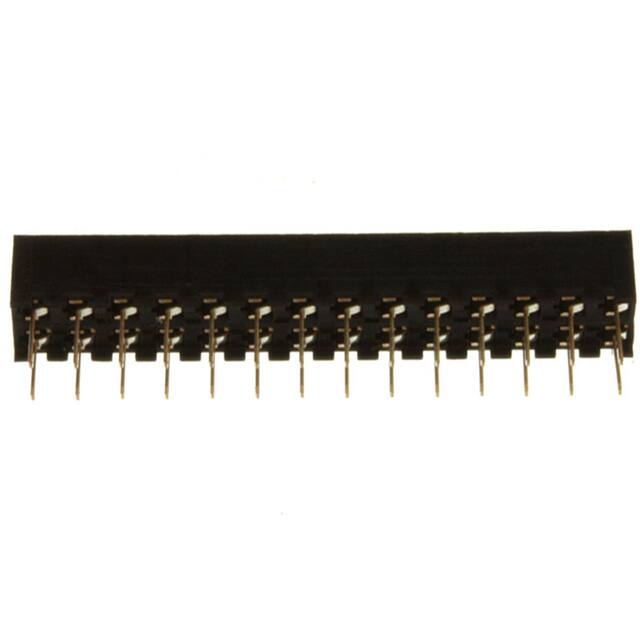

A3C-28DA-2DSA(71)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Insulation Resistance

1GOhm

Contact Finish Thickness Mating

8.00μin 0.203μm

Housing Color

Black

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

28

Contact Type

Female Socket

Contact Finish Post

Tin

Row Spacing Mating

0.079 (2.00mm)

Pitch Mating

0.079 2.00mm

Housing Material

PBT

Terminal

Solder

Ambalaj

Tray

Yayın Yılı

2004

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.118 3.00mm

Connector Type

Receptacle

Fastening Type

Push-Pull

Parça Durumu

Active

Contact Gender

Female

Style

Board to Board or Cable

Contact Materials

Phosphor Bronze

Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Çalışma Sıcaklığı

-55°C~85°C

Stack Height Mating

5.1mm 6mm

REACH Uyumluluk Kodu

unknown

Lead Pitch

2mm

ECCN Kodu

EAR99

Nominal Gerilim

200VAC

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Montaj Tipi

Through Hole
