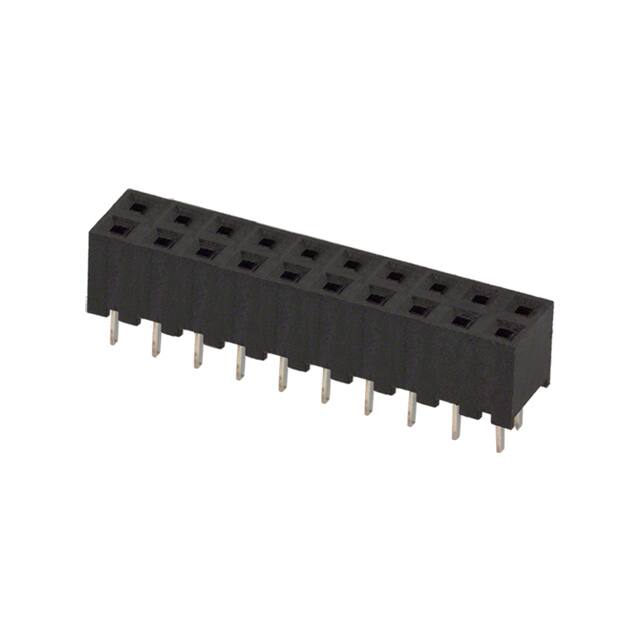

A3C-20DA-2DSC(71)

Teknik Özellikler

Pitch Mating

0.079 2.00mm

Housing Material

PBT

Terminal

Solder

Ambalaj

Tube

Yayın Yılı

2008

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.079 2.00mm

Fastening Type

Push-Pull

Connector Type

Receptacle

Contact Finish Thickness Mating

8.00μin 0.203μm

Housing Color

Black

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

20

Contact Type

Female Socket

Contact Finish Post

Tin

Row Spacing Mating

0.079 (2.00mm)

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Montaj Tipi

Through Hole

Seri

A3

Contact Shape

Square

Montaj

Through Hole

Orientation

Straight

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Gender

Female

Style

Board to Board or Cable

Contact Materials

Phosphor Bronze

Insulation Materials

Polybutylene Terephthalate (PBT)

Applications

General Purpose, Telecommunications

Insulation Height

0.165 4.20mm

Çalışma Sıcaklığı

-55°C~85°C

Stack Height Mating

5.1mm 6mm

Lead Pitch

2mm

REACH Uyumluluk Kodu

unknown
