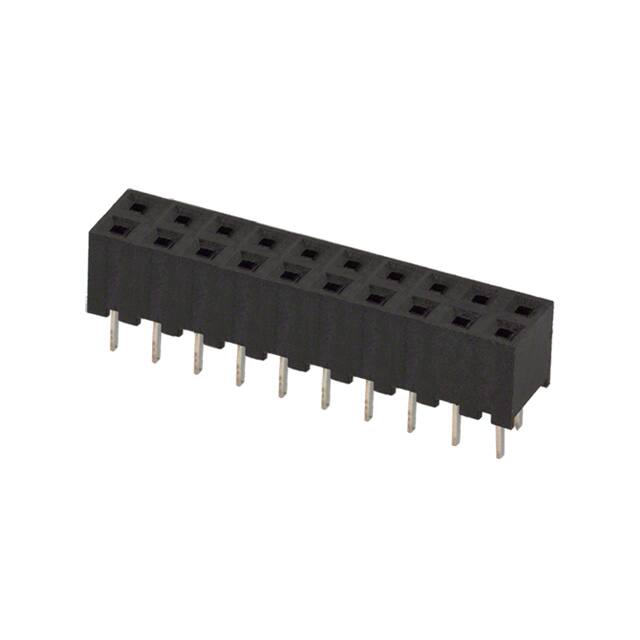

A3C-20DA-2DSA(71)

Teknik Özellikler

Stack Height Mating

5.1mm 6mm

Nominal Gerilim

200VAC

Parça Durumu

Active

Style

Board to Board or Cable

Contact Gender

Female

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Çalışma Sıcaklığı

-55°C~85°C

Gender

Female

Orientation

Straight

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Montaj Tipi

Through Hole

Max Current Rating

1A

Row Spacing Mating

0.079 (2.00mm)

Maks. Çalışma Sıcaklığı

85°C

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Sıra Sayısı

2

Connector Type

Receptacle

Contact Length Post

0.118 3.00mm

Fastening Type

Push-Pull

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Uzunluk

20mm

Yayın Yılı

2008

Lead Pitch

2mm

Current Rating Amps

1A

Number Of Contacts

20

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

200V

Seri

A3

Contact Shape

Square

Montaj

Through Hole

Contact Resistance

15mOhm

Contact Finish Mating

Gold
