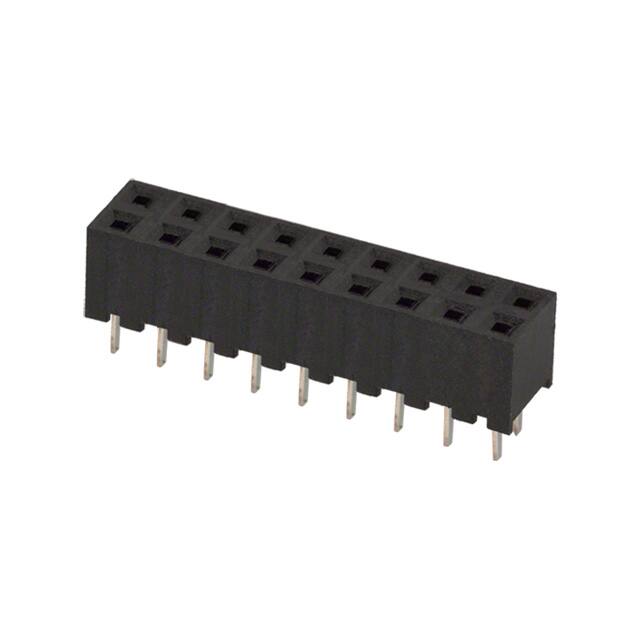

A3C-18DA-2DSC(71)

Teknik Özellikler

Orientation

Straight

Body Depth

0.165 inch

Length Termination

0.079 inch

Montaj Tipi

Through Hole

Akım Değeri

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Nominal Gerilim

200VAC

Stack Height Mating

5.1mm 6mm

REACH Uyumluluk Kodu

unknown

Applications

General Purpose, Telecommunications

Insulation Height

0.165 4.20mm

Gender

Female

Çalışma Sıcaklığı

-55°C~85°C

Insulation Materials

Polybutylene Terephthalate (PBT)

Parça Durumu

Active

Style

Board to Board or Cable

Sıra Sayısı

2

Dielectric Withstanding Voltage

650VAC V

Contact Length Post

0.079 2.00mm

Connector Type

Receptacle

Fastening Type

Push-Pull

Number Of Positions Loaded

All

Number Of Pcb Rows

2

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Yayın Yılı

2004

Housing Material

Plastic

Pitch Mating

0.079 2.00mm

Row Spacing Mating

0.079 (2.00mm)

HTS Kodu

8536.69.40.40

Body Breadth

0.157 inch

Contact Finish Mating

Gold

Montaj

Through Hole

Contact Resistance

15mOhm

Seri

A3

Contact Shape

Square
