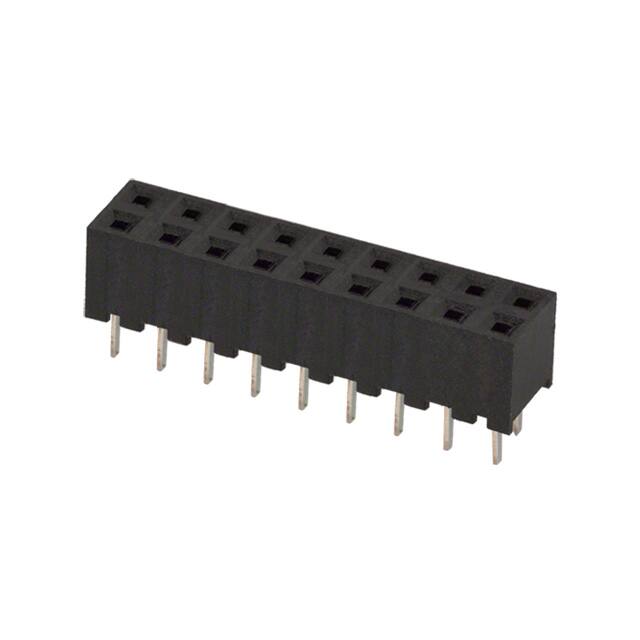

A3C-18DA-2DSA(71)

Teknik Özellikler

Terminal

Solder

Yayın Yılı

2004

Ambalaj

Tray

Housing Material

Plastic

Pitch Mating

0.079 2.00mm

Insulation Color

Black

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.118 3.00mm

Connector Type

Receptacle

Fastening Type

Push-Pull

Contact Plating

Gold

Renk

Black

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

8.00μin 0.203μm

Pitch

2.0066mm

Row Spacing Mating

0.079 (2.00mm)

Pozisyon Sayısı

18

Contact Finish Thickness Post

39.4μin 1.00μm

Housing Color

Black

Contact Finish Post

Tin

Contact Type

Female Socket

Akım Değeri

1A

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Gold

Seri

A3

Contact Shape

Square

Montaj

Through Hole

Orientation

Straight

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Gender

Female

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Contact Materials

Phosphor Bronze
