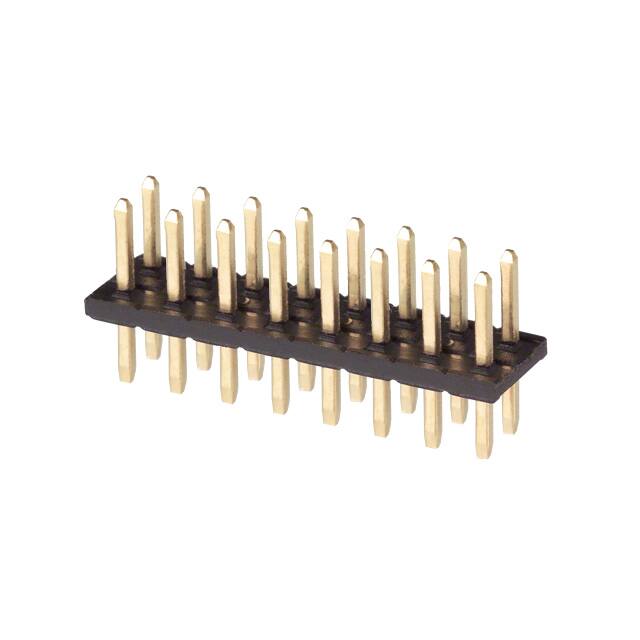

A3C-16P-2DSA

Teknik Özellikler

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Resistance

1000000000Ohm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Housing Color

Black

Pozisyon Sayısı

16

Contact Finish Thickness Post

Flash

Ambalaj

Bulk

Terminal

Solder

Number Of Conductors

ONE

Shrouding

Unshrouded

Yükseklik

4.4mm

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Contact Materials

Brass

Filter Feature

NO

Plating Thickness

8μin

Lead Pitch

2mm

Durability

100 Cycles

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Rated Current Signal

1A

Contact Finish Mating

Gold

Contact Shape

Square

Din Conformance

NO

Seri

A3

Contact Resistance

15mOhm

Montaj

Through Hole

JESD-609 Kodu

e4

Body Breadth

0.157 inch

Contact Lengthmating

0.138 3.50mm

Row Spacing Mating

0.079 (2.00mm)

Yayın Yılı

2008

Uzunluk

16mm

Additional Feature

HIGH DENSITY

Housing Material

Polyamide

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Number Of Positions Loaded

All
