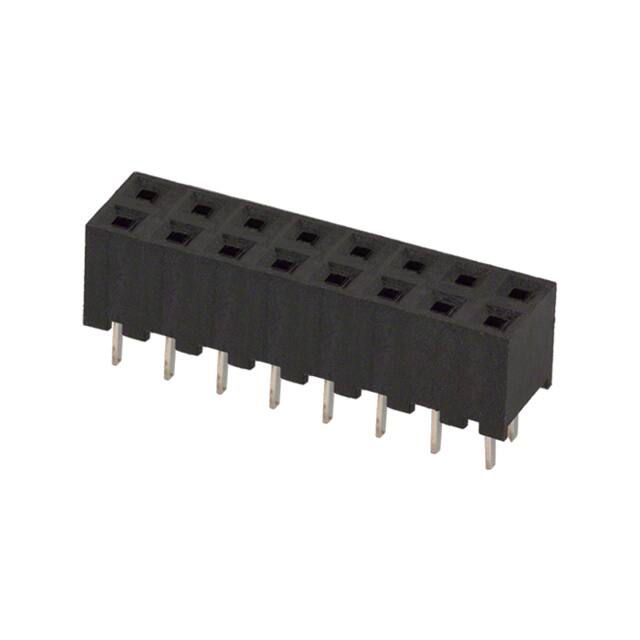

A3C-16DA-2DSC(71)

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Ambalaj

Tube

Number Of Conductors

ONE

Contact Finish Thickness Mating

8.00μin 0.203μm

Insulation Resistance

1000000000Ohm

Contact Finish Post

Tin

Contact Type

Female Socket

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

16

Housing Color

Black

Polarization Key

POLARIZED HOUSING

Rated Current Signal

1A

Reliability

COMMERCIAL

Contact Shape

Square

Seri

A3

Contact Resistance

15mOhm

Montaj

Through Hole

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Lead Pitch

2mm

Body Length Or Diameter

0.63 inch

Durability

100 Cycles

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Yayın Yılı

2008

Reference Standard

UL

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Connector Type

Receptacle

Contact Length Post

0.079 2.00mm

Fastening Type

Push-Pull

Sıra Sayısı

2

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.157 inch
