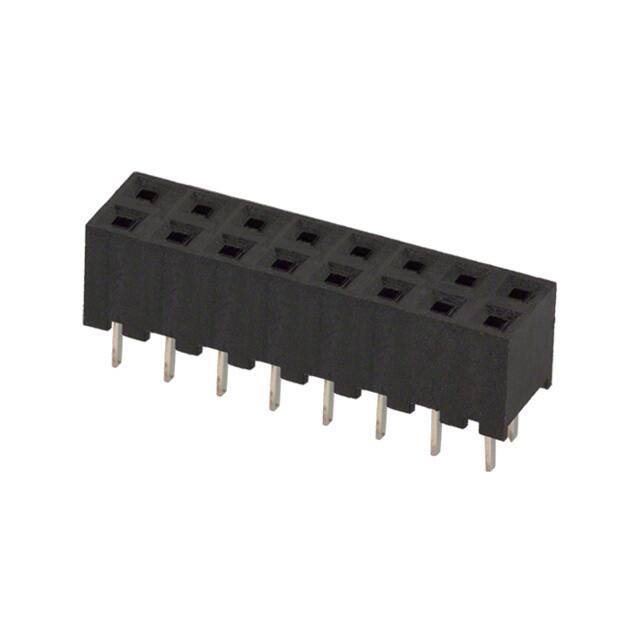

A3C-16DA-2DSA(71)

Teknik Özellikler

Number Of Conductors

ONE

Ambalaj

Tube

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Post

39.4μin 1.00μm

Pozisyon Sayısı

16

Housing Color

Black

Contact Finish Post

Tin

Contact Type

Female Socket

Insulation Resistance

1000000000Ohm

Contact Finish Thickness Mating

8.00μin 0.203μm

Depth

4mm

Contact Finish Mating

Gold

Montaj

Through Hole

Contact Resistance

15mOhm

Seri

A3

Contact Shape

Square

Reliability

COMMERCIAL

Rated Current Signal

1A

Durability

100 Cycles

Lead Pitch

2mm

Mating Contact Pitch

0.079 inch

Max Voltage Rating Ac

200V

Contact Materials

Phosphor Bronze

Dielectric Withstanding Voltage

650VAC V

Sıra Sayısı

2

Fastening Type

Push-Pull

Contact Length Post

0.118 3.00mm

Connector Type

Receptacle

Number Of Positions Loaded

All

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Reference Standard

UL

Yayın Yılı

2008

Uzunluk

16mm

Housing Material

Plastic

Pitch Mating

0.079 2.00mm
