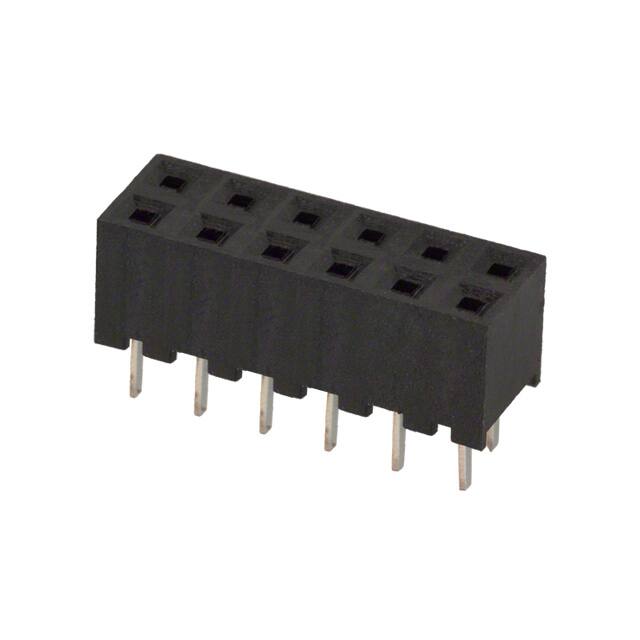

A3C-12DA-2DSA(71)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

1A

Montaj Tipi

Through Hole

Seri

A3

Contact Shape

Square

Montaj

Through Hole

Orientation

Straight

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Parça Durumu

Active

Contact Gender

Female

Style

Board to Board or Cable

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

200V

Insulation Materials

Polybutylene Terephthalate (PBT)

Applications

General Purpose, Telecommunications

Insulation Height

0.165 4.20mm

Çalışma Sıcaklığı

-55°C~85°C

Stack Height Mating

5.1mm 6mm

Lead Pitch

2mm

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Nominal Gerilim

200VAC

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Terminal

Solder

Uzunluk

12mm

Ambalaj

Tube

Yayın Yılı

2004

Material Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Length Post

0.118 3.00mm

Connector Type

Receptacle

Fastening Type

Push-Pull

HTS Kodu

8536.69.40.40

Depth

4mm
