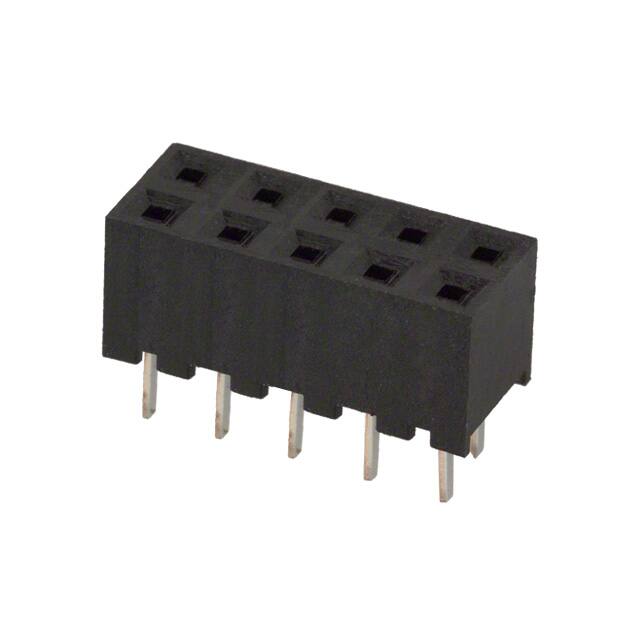

A3C-10DA-2DSA(71)

Teknik Özellikler

Depth

4mm

HTS Kodu

8536.69.40.40

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Finish Post

Tin

Contact Type

Female Socket

Housing Color

Black

Max Current Rating

1A

Pozisyon Sayısı

10

Contact Finish Thickness Post

39.4μin 1.00μm

Row Spacing Mating

0.079 (2.00mm)

Pitch Mating

0.079 2.00mm

Housing Material

Plastic

Yayın Yılı

2008

Ambalaj

Tray

Uzunluk

10mm

Terminal

Solder

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Connector Type

Receptacle

Contact Length Post

0.118 3.00mm

Sıra Sayısı

2

Number Of Positions Loaded

All

Max Voltage Rating Ac

200V

Contact Materials

Phosphor Bronze

Style

Board to Board or Cable

Contact Gender

Female

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Insulation Height

0.165 4.20mm

Applications

General Purpose, Telecommunications

Insulation Materials

Polybutylene Terephthalate (PBT)

Nominal Gerilim

200VAC

ECCN Kodu

EAR99

Lead Pitch

2mm

REACH Uyumluluk Kodu

unknown

Stack Height Mating

5.1mm 6mm

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)
