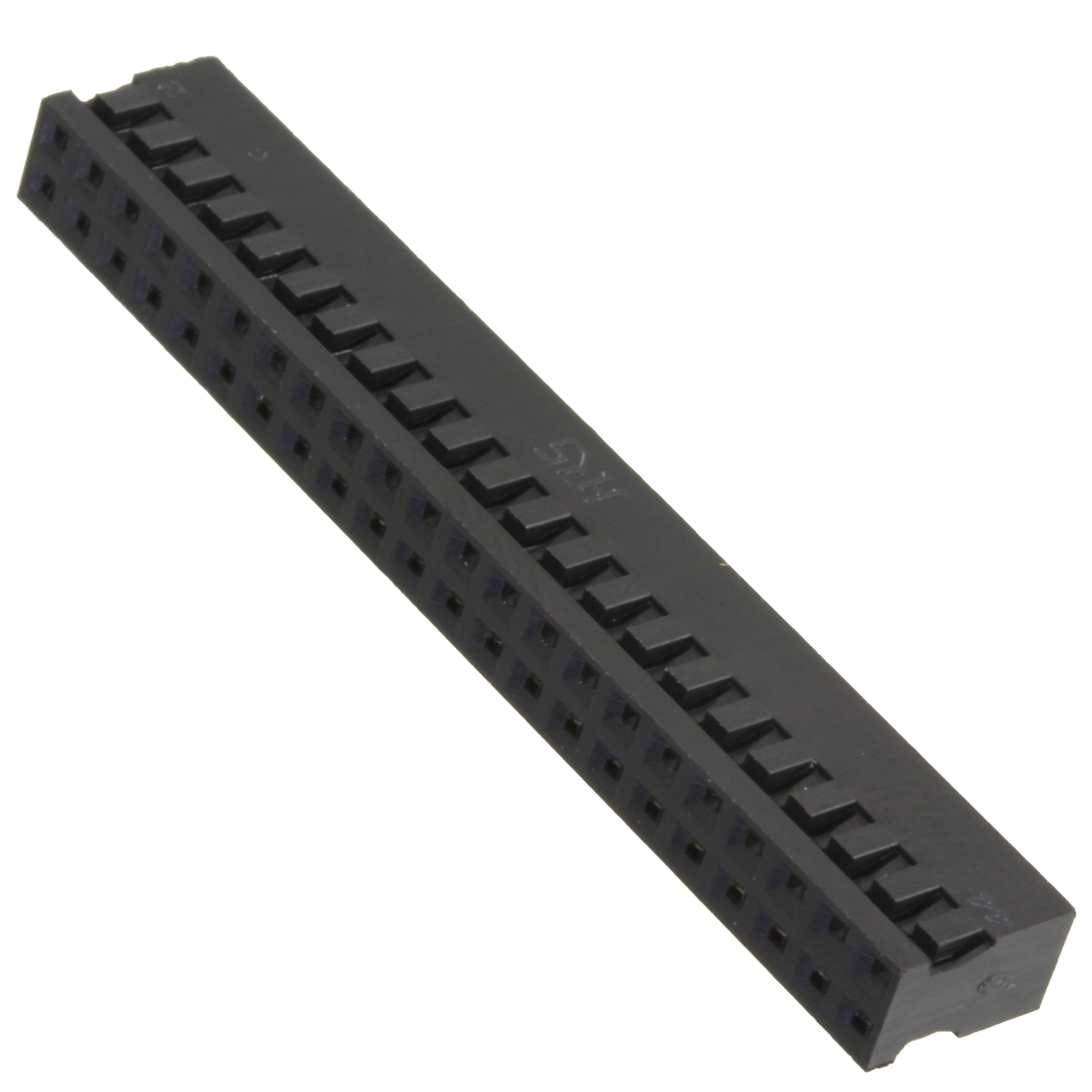

A3B-44D-2C

Teknik Özellikler

Pitch

0.079 2.00mm

Contact Type

Female Socket

Pozisyon Sayısı

44

JESD-609 Kodu

e4

Note

Contacts Not Included

Wire Size Min

36 AWG

Insulation Resistance

1000000000Ohm

Body Breadth

0.157 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

7mm

Row Spacing

0.079 (2.00mm)

Connector Type

Receptacle

Sıra Sayısı

2

Mixed Contacts

NO

Mil Conformance

NO

Reference Standard

UL

Renk

Black

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Iec Conformance

NO

Yayın Yılı

2008

Ambalaj

Bulk

Uzunluk

44mm

Housing Material

PBT

Ul Flammability Code

94V-0

Operating Temperature Min

-55°C

REACH Uyumluluk Kodu

unknown

Operating Temperature Max

85°C

Durability

100 Cycles

Gender

Female

Kurşunsuz Kodu

yes

Genişlik

4mm

Contact Materials

PHOSPHOR BRONZE

Total Number Of Contacts

44

Parça Durumu

Active

Filter Feature

NO

Contact Finish Mating

GOLD

Din Conformance

NO

Contact Termination

Crimp

Seri

A3
