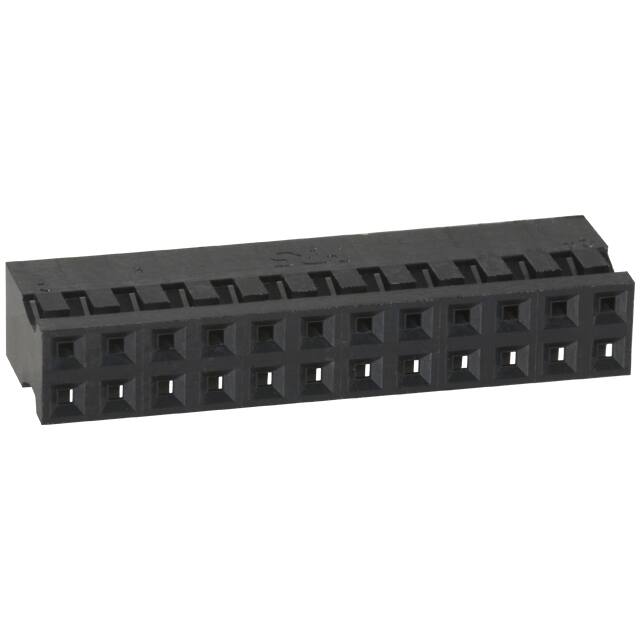

A3B-24D-2C

Teknik Özellikler

Filter Feature

NO

Contact Materials

PHOSPHOR BRONZE

Kurşunsuz Kodu

yes

Durability

100 Cycles

Option

GENERAL PURPOSE

Reliability

COMMERCIAL

Montaj

Cable, Free Hanging

Seri

A3

Din Conformance

NO

Contact Finish Mating

GOLD

Depth

7mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance

1000000000Ohm

Note

Contacts Not Included

Pozisyon Sayısı

24

Contact Type

Female Socket

Pitch

0.079 2.00mm

Ambalaj

Bulk

Renk

Black

Total Number Of Contacts

24

Parça Durumu

Active

Genişlik

4mm

Gender

Female

Operating Temperature Max

85°C

ECCN Kodu

EAR99

Nominal Gerilim

200V

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-55°C

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Free Hanging (In-Line)

Akım Değeri

1A

Orientation

Straight

Contact Termination

Crimp

HTS Kodu

8536.69.40.40

Body Breadth

0.157 inch

Wire Size Min

36 AWG

JESD-609 Kodu

e4

Housing Material

PBT

Ul Flammability Code

94V-0
