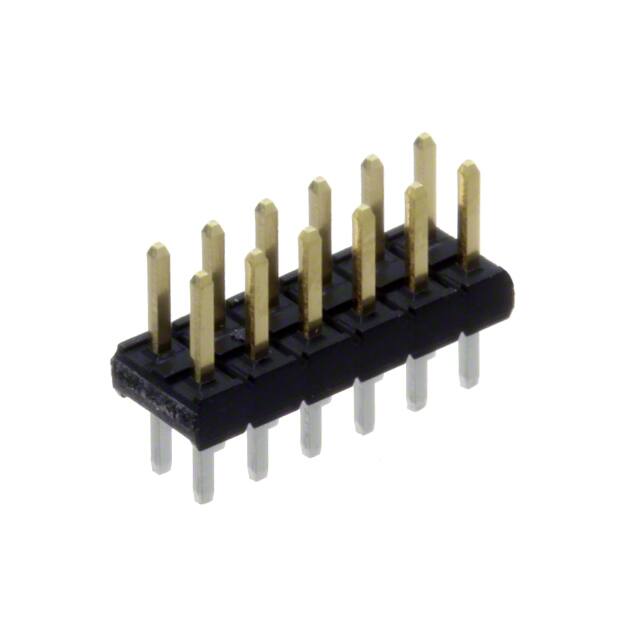

A3B-12PA-2DSA(51)

Teknik Özellikler

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Post

Tin

Contact Type

Male Pin

Pozisyon Sayısı

12

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Finish Thickness Mating

Flash

Contact Lengthmating

0.138 3.50mm

Number Of Positions Loaded

All

Fastening Type

Push-Pull

Connector Type

Header

Contact Length Post

0.102 2.60mm

Sıra Sayısı

2

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Terminal

Solder

Ambalaj

Bulk

Shrouding

Unshrouded

Insulation Color

Black

Pitch Mating

0.079 2.00mm

Overall Contact Length

0.311 7.90mm

Stack Height Mating

6mm 8.8mm

Current Rating Amps

1A

Nominal Gerilim

200VAC

Insulation Materials

Polyamide (PA), Nylon

Çalışma Sıcaklığı

-55°C~85°C

Insulation Height

0.071 1.80mm

Contact Materials

Brass

Style

Board to Board or Cable

Parça Durumu

Active

Contact Finish Mating

Gold

Contact Shape

Square

Seri

A3

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)
